Model MPF Bases for Vertical Split Case Pumps, Supplemental Base Mounted Isolated Non-Seismic

SKU: MPF-Bases-for-Vertical-Split-Case-Pumps Category:

* Request quote to see pricing

Request Quote

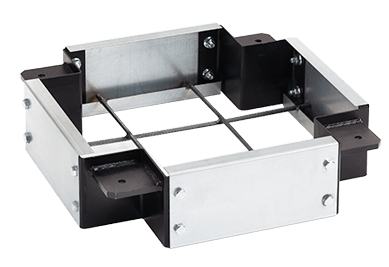

The MPF Bases for Vertical Split Case Pumps are modular pouring forms designed for use with mechanical equipment that requires a concrete inertia base. MPF Bases are available in 6″ and 10″ thicknesses and come pre-assembled. The bolt-together design, comes complete with isolator brackets, isolators, anchor bolt templates and rebar cut to size. They can be shipped assembled or in a “knock-down “configuration for field installation or inventory and stocking. The modular forms are galvanized sheet metal which also serves as the finish on the outside of the pouring form. When MPF Bases are filled with concrete, they become an inertia base and provide an effective means to isolate vibration and limit the motion of vertical split case pumps.

MPF Bases for Vertical Split Case Pumps are rectangular in size and are engineered to support the base elbow of a vertical split case pump. The isolator housings are recessed and flush with the perimeter of the base.

Features & Benefits
Modular
Ideal for inventory and stocking
Shipped fully assembled or knocked-down
Flush profile design
Available in multiple sizes and thicknesses
Galvanized sheet metal finish

Applications
Pumps
Fans
Compressors
Chillers
Other rotational equipment

Model MPF 6 inch Non seismic modular pouring form inertia base 1 inch deflection

Model MPF 10 inch Non seismic modular pouring form inertia base 1 inch deflection.

MPF 6 inch Non-seismic modular pouring form inertia base 2 inch deflection.
