Model M Isolators, Spring Floor Mounted Non-Seismic

SKU: M-Isolators Category:

* Request quote to see pricing

Request Quote

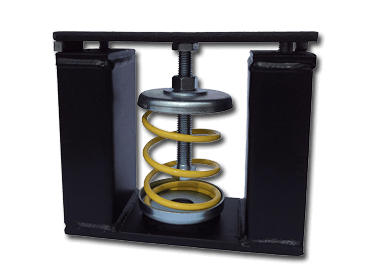

M Series Isolators utilize our open spring isolators within a welded steel housing. M Series Isolators are available with up to 5 inches of static deflection and loads up to 26,270 lbs.

Features & Benefits

  • Rugged steel housing serves as blocking during equipment erection
  • Housing offers no difference in elevation between installed and operating height
  • Installation spacer ensures accurate installation height and adjustment
  • Top plate may be welded or bolted to equipment – allowing flexible design options
  • Housings are identical in height within each series
  • Easily accessible bolt holes permit simplified installation
  • Elastomeric acoustical cup eliminates high frequency vibrations
  • Color-coded springs permit ease of identification of load capacity
  • Internal adjustments
  • For use in low seismic and wind applications when attached to structural steel

Applications

  • HVAC equipment
  • Air handling units
  • Fans
  • Pumps
  • Cooling towers
  • Chillers
  • Condensing units
  • Engine gensets

Model M2E-1C 500-1040 lbs.Spring isolators with internal adjustment 1 inch deflection

Model M2E-1E 3400-6500 lbs.Spring isolators with internal adjustment 1 inch deflection

Model M2E-1R 4200-28000 lbs.Spring isolators with internal adjustment 1 inch deflection

Model M2E-2D 1450-2640 lbs. Spring Isolators with Internal Adjustment 2 inch deflection

Model M2E-2E 2800-5400 lbs.Spring isolator with internal adjustment 2 inch deflection.pdf

Model M2E-2R 8400-16700 lbs.Spring isolators with internal adjustment 2 inch deflection.pdf

Model M2E-3C 150-2330 lbs Spring isolators with internal adjustment 3 inch deflection.pdf

Model M2E-3D 1600-4070 lbs.Spring isolators with internal adjustment 3 inch deflection.pdf

Model M2E-3E 3200-7000 lbs.Spring isolators with internal adjustment 3 inch deflection.pdf

Model M2E-3R 11030-16640 lbs.Spring isolators with internal adjustment 3 inch deflection.pdf

Model M2E-4C 130-2920 lbs.Spring isolators with internal adjustment 4 inch deflection.pdf

Model M2E-4D 3530-10420 lbs.Spring isolators with internal adjustment 4 inch deflection.pdf

Model M2E-5C 500-4600 lbs.Spring isolators with internal adjustment 5 inch deflection.pdf

Model M2E-5D 5400-11350 lbs.Spring isolators with internal adjustment 5 inch deflection.pdf

Model M2H-1C 500-1040 lbs.Spring isolators with internal adjustment 1 inch deflection

Model M2H-1E 3400-6500 lbs.Spring isolators with internal adjustment 1 inch deflection

Model M2H-1R 4200-28000 lbs.Spring isolators with internal adjustment 1 inch deflection

Model M2H-2D 1450-3280 lbs. Spring Isolators with Internal Adjustment 2 inch deflection

Model M2H-2E 2800-5400 lbs.Spring isolators with internal adjustment 2 inch deflection.pdf

Model M2H-2R 8400-16700 lbs.Spring isolators with internal adjustment 2 inch deflection

Model M2H-3C 150-2330 lbs.Spring isolators with internal adjustment 3 inch deflection.pdf

Model M2H-3D 1600-4070 lbs.Spring isolators with internal adjustment 3 inch deflection.pdf

Model M2H-3E 3200-7000 lbs.Spring isolators with internal adjustment 3 inch deflection.pdf

Model M2H-3R 11030-16640 lbs.Spring isolators with internal adjustment 3 inch deflection.pdf

Model M2H-4C 130-2920 lbs.Spring isolators with internal adjustment 4 inch deflection.pdf

Model M2H-4D 3530-10420 lbs.Spring isolators with internal adjustment 4 inch deflection.pdf

Model M2H-5C 500-4600 lbs.Spring isolators with internal adjustment 5 inch deflection.pdf

Model M2H-5D 5400-11350 lbs.Spring isolators with internal adjustment 5 inch deflection.pdf

Model M2P 2D 1450-2640 lbs. Spring Isolators with Internal Adjustment and Positioning Pin 2 inch deflection

Model M2P-1C 500-1040 lbs.Spring isolators with internal adjustment and positioning pin 1 inch deflection

Model M2P-1E 3400-6500 lbs.Spring isolators with internal adjustment and positioning pin 1 inch deflection

Model M2P-1R 4200-28000 lbs.Spring isolators with internal adjustment and positioning pin 1 inch deflection

Model M2P-2E 2800-5400 lbs.Spring isolators with internal adjustment and positioning pin 2 inch deflection.pdf

Model M2P-2R 8400-16700 lbs.Spring isolators with internal adjustment and positioning pin 2 inch deflection.pdf

Model M2P-3C 150-2330 lbs.Spring isolators with internal adjustment and positioning pin 3 inch deflection.pdf

Model M2P-3D 1600-4070 lbs.Spring isolators with internal adjustment and positioning pin 3 inch deflection.pdf

Model M2P-3E 3200-7000 lbs.Spring isolators with internal adjustment and positioning pin 3 inch deflection.pdf

Model M2P-3R 11030-16640 lbs.Spring isolators with internal adjustment and positioning pin 3 inch deflection.pdf

Model M2P-4C 130-2920 lbs.Spring isolators with internal adjustment and positioning pin 4 inch deflection.pdf

Model M2P-4D 3530-10420 lbs.Spring isolators with internal adjustment and positioning pin 4 inch deflection.pdf

Model M2P-5C 500-4600 lbs.Spring isolators with internal adjustment and positioning pin 5 inch deflection.pdf

Model M2P-5D 5400-11350 lbs.Spring isolators with internal adjustment and positioning pin 5 inch deflection.pdf

Model M2T-1C 500-1040 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 1 inch deflection

Model M2T-1E 3400-6500 lbs.Spring isolators with internal adjustment and elastomeric pad covered top plate 1 inch deflection

Model M2T-1R 4200-28000 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 1 inch deflection

Model M2T-2D 1450-2640 lbs. Spring Isolators with Internal Adjustment and Elastomeric Pad-Covered Top Plate 2 inch deflection

Model M2T-2E 2800-5400 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 2 inch deflection.pdf

Model M2T-2R 8400-16700 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 2 inch deflection.pdf

Model M2T-3C 150-2330 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 3 inch deflection.pdf

Model M2T-3D 1600-4070 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 3 inch deflection.pdf

Model M2T-3E 3200-7000 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 3 inch deflection.pdf

Model M2T-3R 11030-16640 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 3 inch deflection.pdf

Model M2T-4C 130-2920 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 4 inch deflection.pdf

Model M2T-4D 3530-10420 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 4 inch deflection.pdf

Model M2T-5C 500-4600 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 5 inch deflection.pdf

Model M2T-5D 5400-11350 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 5 inch deflection.pdf

Model ME-1B 20-85 lbs.Spring isolators with internal adjustment 1 inch deflection

Model ME-1C 50-520 lbs.Spring isolators with internal adjustment 1 inch deflection

Model ME-1E 195-3250 lbs.Spring isolators with internal adjustment 1 inch deflection

Model ME-1R 2100-14000 lbs.Spring isolators with internal adjustment 1 inch deflection

Model ME-2D 75-1640 lbs. Spring Isolators with Internal Adjustment 2 inch deflection

Model ME-2E 80-2700 lbs.Spring isolators with internal adjustment 2 inch deflection.pdf

Model ME-2R 4200-8350 lbs.Spring isolators with internal adjustment 2 inch deflection.pdf

Model ME-3C 75-1165 lbs.Spring isolators with internal adjustment 3 inch deflection.pdf

Model ME-3D 800-2035 lbs.Spring isolators with internal adjustment 3 inch deflection.pdf

Model ME-3E 1600-3500 lbs.Spring isolators with internal adjustment 3 inch deflection.pdf

Model ME-3R 5500-8320 lbs.Spring isolators with internal adjustment 3 inch deflection.pdf

Model ME-4C 65-1460 lbs.Spring isolators with external adjustment 4 inch deflection.pdf

Model ME-4D 1765-5210 lbs.Spring isolators with external adjustment 4 inch deflection.pdf

Model ME-5C 250-2300 lbs.Spring isolators with external adjustment 5 inch deflection.pdf

Model ME-5D 2700-5675 lbs.Spring isolators with external adjustment 5 inch deflection.pdf

Model MH-1B 20-85 lbs.Spring isolators with internal adjustment 1 inch deflection

Model MH-1C 50-520 lbs.Spring isolators with internal adjustment 1 inch deflection

Model MH-1E 195-3250 lbs.Spring isolators with internal adjustment 1 inch deflection

Model MH-1R 2100-14000 lbs.Spring isolators with internal adjustment 1 inch deflection.pdff

Model MH-2D 75-1640 lbs. Spring Isolators with Internal Adjustment 2 inch deflection

Model MH-2E 80-2700 lbs.Spring isolators with internal adjustment 2 inch deflection.pdf

Model MH-2R 4200-8350 lbs.Spring isolators with internal adjustment 2 inch deflection.pdf

Model MH-3C 75-1165 lbs.Spring isolators with internal adjustment 3 inch deflection.pdf

Model MH-3D 800-2035 lbs.Spring isolators with internal adjustment 3 inch deflection.pdf

Model MH-3E 1600-3500 lbs.Spring isolators with internal adjustment 3 inch deflection.pdf

Model MH-3R 5515-8350 lbs.Spring isolators with internal adjustment 3 inch deflection.pdf

Model MH-4C 65-1460 lbs.Spring isolators with internal adjustment 4 inch deflection.pdf

Model MH-4D 1765-5210 lbs.Spring isolators with internal adjustment 4 inch deflection.pdf

Model MH-5C 250-2300 lbs.Spring isolators with internal adjustment 5 inch deflection.pdf

Model MH-5D 2700-5675 lbs.Spring isolators with internal adjustment 5 inch deflection.pdf

Model MP-1B 20-85 lbs.Spring isolators with internal adjustment and positioning pin 1 inch deflection

Model MP-1C 50-520 lbs.Spring isolators with internal adjustment and positioning pin 1 inch deflection

Model MP-1E 195-3250 lbs.Spring isolators with internal adjustment and positioning pin 1 inch deflection

Model MP-1R 2100-14000 lbs.Spring isolators with internal adjustment and positioning pin 1 inch deflection

Model MP-2D 75-1640 lbs. Spring Isolators with Internal Adustment and Positiong Pin 2 inch deflection

Model MP-2E 80-2700 lbs.Spring isolators with internal adjustment and positioning pin 2 inch deflection.pdf

Model MP-2R 4200-8350 lbs.Spring isolators with internal adjustment and positioning pin 2 inch deflection.pdf

Model MP-3C 75-1165 lbs.Spring isolators with internal adjustment and positioning pin 3 inch deflection.pdf

Model MP-3D 800-2035 lbs.Spring isolators with internal adjustment and positioning pin 3 inch deflection.pdf

Model MP-3E 1600-3500 lbs.Spring isolators with internal adjustment and positioning pin 3 inch deflection.pdf

Model MP-3R 5515-8320 lbs.Spring isolators with internal adjustment and positioning pin 3 inch deflection.pdf

Model MP-4C 65-1460 lbs.Spring isolators with internal adjustment and positioning pin 4 inch deflection.pdf

Model MP-4D 1765-5210 lbs.Spring isolators with internal adjustment and positioning pin 4 inch deflection.pdf

Model MP-5C 250-2300 lbs.Spring isolators with internal adjustment and positioning pin 5 inch deflection.pdf

Model MP-5D 2700-5675 lbs.Spring isolators with internal adjustment and positioning pin 5 inch deflection.pdf

Model MT-1B 20-85 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 1 inch deflection

Model MT-1C 50-520 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 1 inch deflection

Model MT-1E 195-3250 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 1 inch deflection

Model MT-1R 2100-14000 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 1 inch deflection

Model MT-2D 75-1640 lbs. Spring Isolators with Internal Adjustment and Elastomeric Pad-Covered Top Plate 2 inch deflection

Model MT-2E 80-2700 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 2 inch deflection.pdf

Model MT-2R 4200-8350 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 2 inch deflection

Model MT-3C 75-1165 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 3 inch deflection.pdf

Model MT-3D 800-2035 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 3 inch deflection.pdf

Model MT-3E 1600-3500 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 3 inch deflection.pdf

Model MT-3R 5515-8320 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 3 inch deflection.pdf

Model MT-4C 65-1460 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 4 inch deflection.pdf

Model MT-4D 1765-5210 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 4 inch deflection.pdf

Model MT-5C 250-2300 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 5 inch deflection.pdf

Model MT-5D 2700-5675 lbs.Spring isolators with internal adjustment and elastomeric pad-covered top plate 5 inch deflection.pdf
