| Unit | Metric |
|---|---|
| Series | LSA3 |
| Travel | 25 mm |
| Metric Travel Filter | 0 to 50 mm |
| Capacity | 14 kg |
| Metric Capacity Filter | 0 to 25 kg |
| Accuracy | 0.003 mm |
| Product Type | Ball Slide |
| M1 | 2.47 |
| M2 | 1.9 |
| M3 | 1.99 |
| A | 143 |
| B | 76 mm |
| D | 55 mm |
| H | 60 mm |
| L | 5 mm |
| S | 52 mm |
| E | 67 |
| F | 10.5 |
| R | 8 |
| G | 13 |
| H1 | 0 |
| J | #0 |
| K | 8" |
| M | 0 |
| N | 95 |
| Axis | (X) Single Axis |

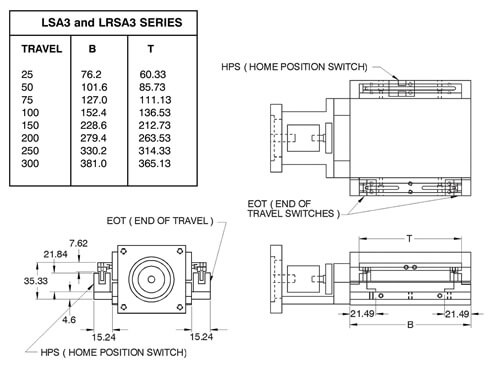

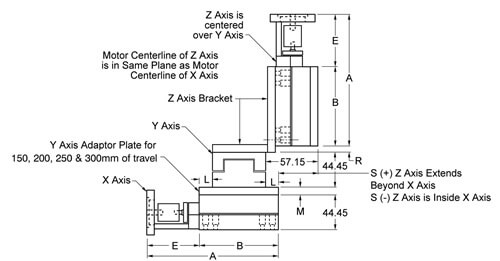

Dimension Drawing
