| Unit | Metric |
|---|---|
| Series | LSA2 |
| Travel | 75 mm |
| Metric Travel Filter | 51 to 100 mm |
| Capacity | 11 kg |
| Metric Capacity Filter | 0 to 25 kg |
| Accuracy | 0.003 mm |
| Product Type | Ball Slide |
| M1 | 2.5 |
| M2 | 4.7 |
| M3 | 4.94 |
| A | 174.8 |
| B | 108.0 mm |
| D | 85 mm |
| H | 85 mm |
| Axis | (X) Single Axis |

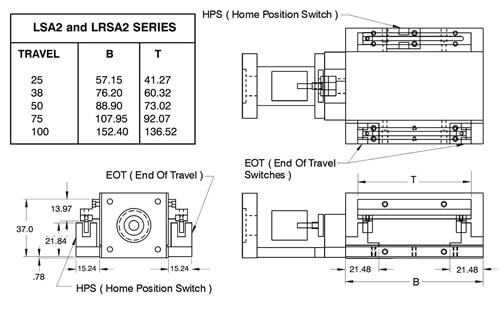

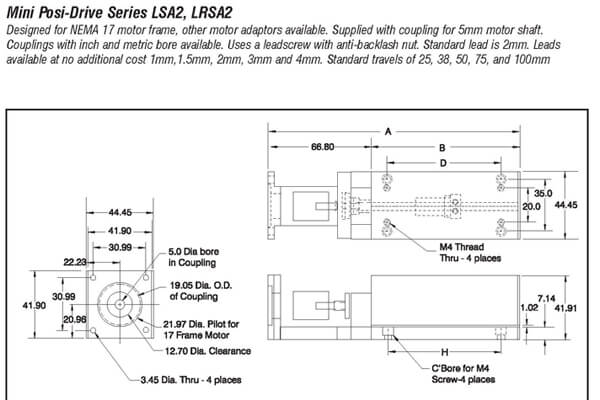

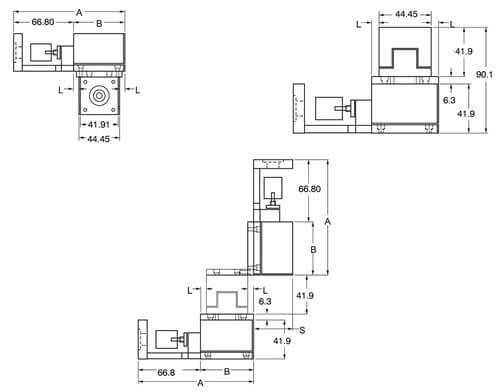

Dimension Drawing
