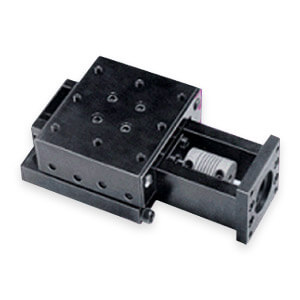

Model LSA2-50-A02-XY, Mini Posi-Drive Stages
UnitMetric
SeriesLSA2
Travel50 mm
Metric Travel Filter0 to 50 mm
Capacity9.1 kg
Metric Capacity Filter0 to 25 kg
Accuracy0.003 mm
Product TypeBall Slide

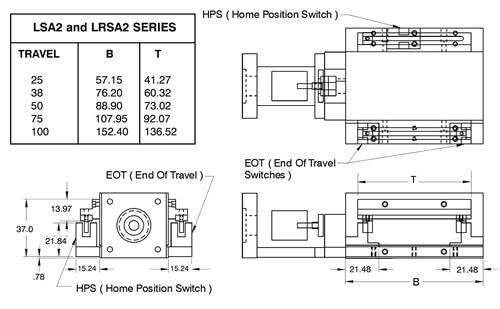

M12.02
M23.32
M33.49
A155.7
B88.9 mm
D65 mm
H65 mm
Axis(XY) Double Axis
