| Unit | Metric |
|---|---|
| Series | LSA1 |
| Travel | 25 mm |
| Metric Travel Filter | 0 to 50 mm |
| Capacity | 3.6 kg |
| Metric Capacity Filter | 0 to 25 kg |
| Accuracy | 0.003 mm |
| Product Type | Ball Slide |
| M1 | 0.63 |
| M2 | 0.68 |
| M3 | 0.71 |
| A | 103.4 |
| B | 50.8 mm |
| C | 52.6 |
| D | 35 mm |
| H | 37 mm |
| Axis | (X) Single Axis |

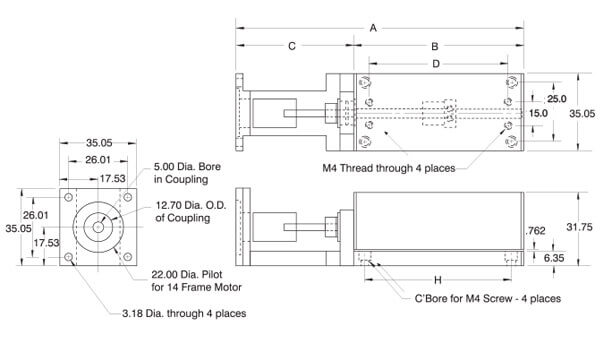

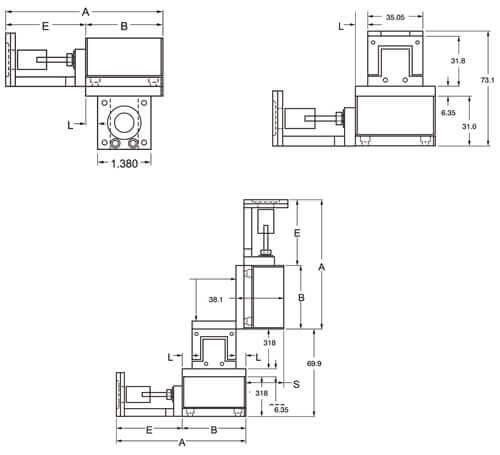

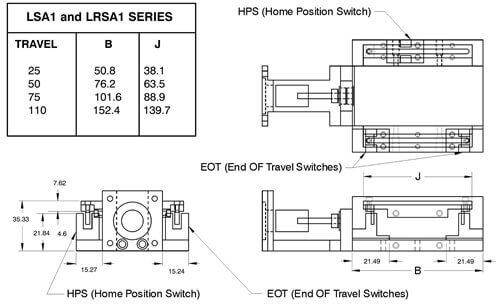

Dimension Drawing
