| Unit | US Standard |
|---|---|
| Series | LS2 |
| Travel | 3" |
| US Travel Filter | 2.01 to 4" |
| Capacity | 30 lbs |
| US Capacity Filter | 0 to 55 lbs |
| Accuracy | 0.0001" |
| Product Type | Ball Slide |
| M1 | 25.52 |
| M2 | 84 |
| M3 | 88.2 |
| A | 8.63" |
| B | 6.00" |
| D | 5.500" |
| H | 4.000" |
| L | 2.125" |
| S | 1.775" |
| Axis | (X) Single Axis |

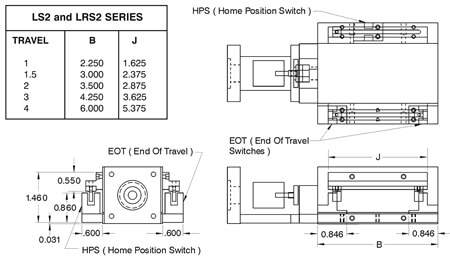

Dimension Drawing
