Model LPTA-2065SS, Low Profile Crossed Roller Slide Tables (Metric)

* Request quote to see pricing

Request Quote

Unit

Metric

Series

LPTA-2000

Travel

40 mm

Metric Travel Filter

0 to 200 mm

Capacity

75 kg

Metric Capacity Filter

0 to 500 kg

L

65 mm

Base Holes

4

U

55 mm

W

33 mm

Carriage Holes

4

M

1 X 30 mm

N

17.5 mm

P

22 mm

J

M4

K

5.5 mm

R

5 mm

D

6.1 mm

d_small

4 mm

h_small

3.8 mm

A

12 mm

B

30 mm

C

6 mm

Accuracy

0.002 mm

X

12 mm

Product Type

Crossed Roller

M1

4.41

M2

9.92

M3

10.42

Carriage Material Type

Aluminum

Rail Material Type

Stainless Steel

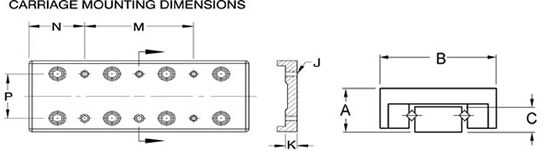

Dimension Drawing
