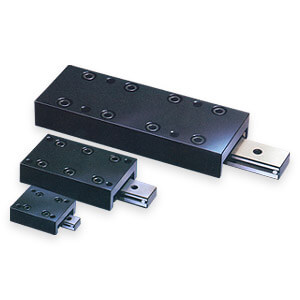

Aluminum / Stainless Steel Low Profile Crossed Roller Tables

Aluminum / Stainless Steel Low Profile Crossed Roller TablesSeries: LPT-1000, LPTA-1000, LPT-2000, LPTA-2000, LPT-3000, LPTA-3000

  • Load Capacity: 50 – 825 lbs.
  • Travel: 0.473 – 5.118″
  • Length: 0.984 – 8.070″
  • Straight Line Accuracy: 0.0001″ / inch of travel
  • Positional Repeatability: .0001″
  • Coefficient of Friction: 0.003 typical
  • Construction: Aluminum carriage, hardened steel or 400 Series stainless crossed roller rail set with double v-grooved inner rail.
  • Finish: Black anodize carriage and hardened steel base.

Isotech’s Low Profile Crossed Roller Tables are low profile, high accuracy slide tables featuring easily adjustable preload and light weight aluminum carriage. Standard inch type threaded and counterbored holes allow easy mounting and installation. The bearing base consists of a two sided single inner rail flanked by two precision V grooved outer rails. High precision rollers captive in a stainless steel cage and positive internal travel stops assure smooth accurate reciprocating motion.

Stainless steel models (ss) offer aluminum carriage with stainless steel rails, rollers, cages and fasteners.

The Isotech Low Profile Crossed Roller Table is ideal anywhere low friction reciprocating mechanisms are used in automated equipment.

  • Compact & Low Profile.
  • High Accuracy (0.0001″/1″) Travel.
  • Inch type Mounting Holes.
  • Light Weight Aluminum Carriage.
  • 400 Series Stainless Steel Models Availabe.
