Model LPT-3080, Low Profile Crossed Roller Slide Tables

* Request quote to see pricing

Request Quote

Unit

US Standard

Series

LPT-3000

Travel

1.772"

US Travel Filter

0 to 2"

Capacity

404.0 lbs

US Capacity Filter

331 to 500 lbs

Accuracy

0.0001"

Product Type

Crossed Roller

M1

127.6"

M2

275.2"

M3

288.9"

A

0.630"

B

1.575"

C

0.315"

D

0.327"

M

1X2.560"

CHole

0.295"

Base Holes

4

Carriage Holes

4

P

1.181"

L

3.150"

J

10 – 32

K

0.295"

R

0.236"

U

2.677"

X

.629"

d_small

0.204"

h_small

.205"

Rail Material Type

Steel

W

1.693"

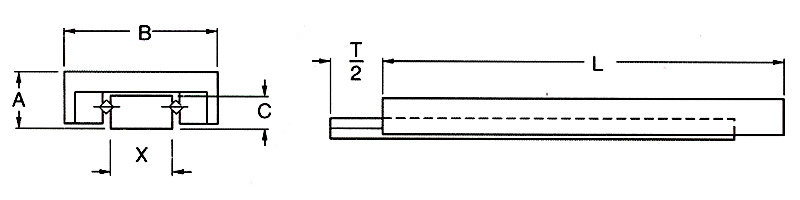

Dimension Drawing
