| Unit | US Standard |
|---|---|
| Series | HPRS4-FB |
| Travel | 6.5" |
| US Travel Filter | 6.01 to 8" |
| Capacity | 350 lbs |
| US Capacity Filter | 331 to 500 lbs |
| Weight | 6.41 lbs |
| A | 10.250" |
| B | 1.750" |
| C | 3.500" |
| D | 8.250" |
| E | 2.000" |
| F | 0.990" |
| H | 8.750" |
| Accuracy | 0.00004" |
| Product Type | Crossed Roller |
| Finish | Black-Other |
| D1 | 0.328 |
| D2 | 0.328" |
| d_small | .204" |
| h_small | 0.205" |
| I | #10-32 |
| A1 | 10.750" |
| M1 | 236.02 |
| M2 | 951.83 |
| M3 | 999.43 |

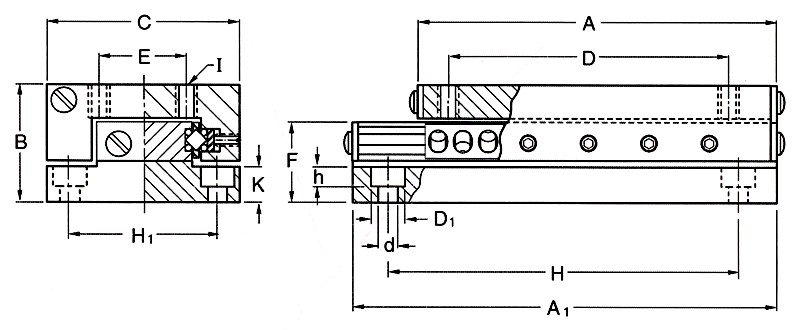

Dimension Drawing
