| Unit | US Standard |
|---|---|
| Series | HPRS2-FB |
| Travel | 3" |
| US Travel Filter | 2.01 to 4" |
| Capacity | 140 lbs |
| US Capacity Filter | 111 to 165 lbs |
| Weight | 0.75 lbs |
| A | 4.000" |
| B | 1.031" |
| C | 1.750" |
| D | 3.375" |
| E | 0.875" |
| F | 0.680" |
| H | 3.500" |
| Accuracy | 0.00004" |

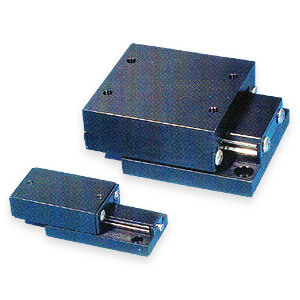

| Product Type | Crossed Roller |
| Finish | Black-Other |
| D1 | 0.24 |
| D2 | 0.240" |
| d_small | .157" |
| h_small | 0.145" |
| I | #6-32 |
| A1 | 4.250" |
| M1 | 69.45 |
| M2 | 109.75 |
| M3 | 114.69 |
Dimension Drawing
