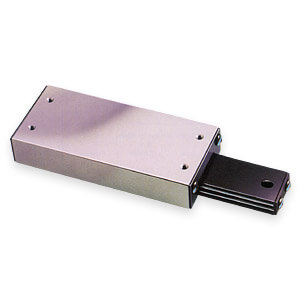

Model EA-3, Ball Slide Assemblies – Metric

SKU: EA-3 Category:

* Request quote to see pricing

Request Quote

US Travel Filter
US Capacity Filter
Unit

Metric

Series

EA

Travel

50 mm

Metric Travel Filter

0 to 200 mm

Capacity

5 kg

Metric Capacity Filter

0 to 500 kg

Weight

37 kg

A

78.0 mm

B

10.4 mm

C

19.0 mm

D

66.0 mm

E

9.0 mm

F

6.3 mm

G

9.5 mm

H

60.0 mm

Carriage Holes

M3 Thread

Hole (d)

3.5

Hole (D1)

6.1

Hole H

3.4

Counter Bore

M3

Accuracy

0.013 mm

Product Type

Ball Slide

Finish

Clear-Black

M1

0.26

M2

0.98

M3

1.02
