Unit | Metric |
---|---|
Series | DL26B Series Linear Actuators |
Width | Double Wide |
Travel | 170 mm |
Metric Travel Filter | 101 to 200 mm |
Load Capacity | 600 N |
Metric Capacity Filter | 401 to 600 N |
Accuracy | 90 mm |
M1 | 12.3 |
M2 | 27.2 |
M3 | 27.2 |
OAL Stepper | 308.7 |
L Stepper | 241.5 |
N Stepper | 3 |
A Stepper | 35.7 |
B Stepper | 42 |
C Stepper | 31 |
D Stepper | 3 |
E Stepper | 22 |
G Stepper | 40.75 |
F Stepper | 3.2 THRU |
H Stepper | 5 |
OAL Servo | 313.8 |
A Servo | 40.8 |
B Servo | 42 |
C Servo | 32.5 |
D Servo | 3 |
E Servo | 30 |
L Servo | 241.5 |
N Servo | 3 |
G Servo | 40.75 |
F Servo | M4 THREAD |
H Servo | 6 |
Drive | Ball screw 6mm dia with 1 mm lead |
Motor Adapter | Yaskawa SGMAH |
CofFriction | 0.01 |
Repeatability | 10 |
Parallelism | 25 |
BackLash | 20 |
Linear Speed | 200 |

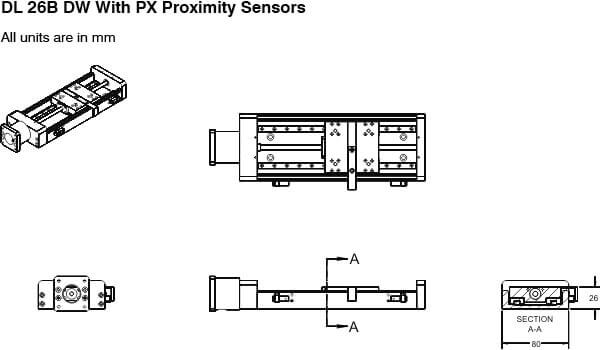

Sensors | Proximity Sensor SUNX 6GLF |
