| Unit | Metric |
|---|---|
| Series | DL33L Series Linear Actuators |
| Width | Double Wide |
| Travel | 60 mm |
| Metric Travel Filter | 0 to 100 mm |
| Load Capacity | 400 N |
| Metric Capacity Filter | 201 to 400 N |
| Accuracy | 50 mm |
| M1 | 14 |
| M2 | 30 |
| M3 | 30 |
| OAL Stepper | 221.8 |
| L Stepper | 150 |
| N Stepper | 2 |
| A Stepper | 48.1 |
| B Stepper | 56.4 |
| C Stepper | 47.2 |
| D Stepper | 7.2 |
| E Stepper | 38.2 |
| G Stepper | 25 |
| F Stepper | 8-32 THREAD |
| H Stepper | 6.35 |
| OAL Servo | 226.9 |
| A Servo | 53.2 |
| B Servo | 60 |
| C Servo | 49.5 |
| D Servo | 8.9 |
| E Servo | 50.1 |
| L Servo | 150 |
| N Servo | 2 |
| G Servo | 25 |
| F Servo | M5 THREAD |
| H Servo | 8 |
| Drive | Teflon Coated lead screw 9.53mm dia with 5 mm lead |
| Motor Adapter | Oriental PK264 (NEMA 23) |
| CofFriction | 0.01 |
| Repeatability | 4 |
| Parallelism | 15 |
| BackLash | 0 |
| Linear Speed | 100 |
| Sensors | Proximity Sensor SUNX 6GLF |

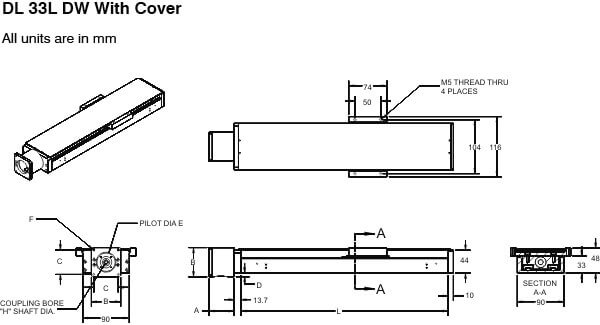

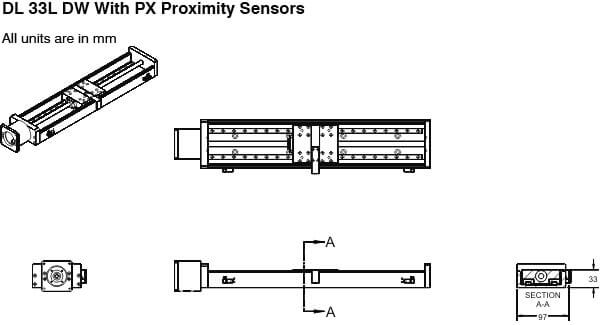

Dimension Drawing
