Model 101-XYZ, Ball Slide Positioning Stage

SKU: 101-XYZ Category:

* Request quote to see pricing

Request Quote

capacityz

capacityxy

Unit

US Standard

Series

100

IM

Inch

Travel

.50"

US Travel Filter

0 to 2"

Capacity

4 lbs

US Capacity Filter

0 to 55 lbs

Accuracy

0.0005"

Product Type

Ball

M1

1.68"

M2

1.6"

M3

1.6"

C

1.00"

D

1.00"

E

.69"

F

.50"

G

.38"

M

1.00"

CBORE

2 – 56

Thread

2 – 56

Holes

10

N

.69"

O

.940"

P

1.265"

L

3.25"

Hx

.38"

Capacity Z

1.25 lbs

Work Surface

1.25 X 1.25

Through Hole

10

Axis

(XYZ) Triple Axis

Option M Price

0

Option LM

0

Option LM Price

0

Option PL

1

Option PL Price

150

Orientation

Center Line

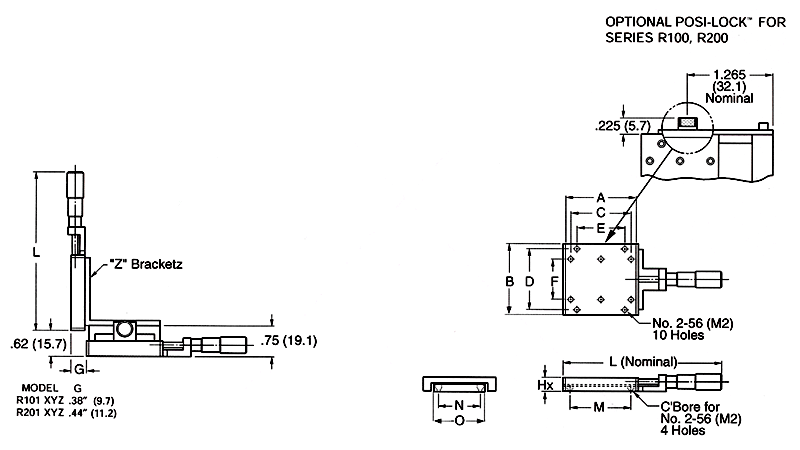

Dimension Drawing
