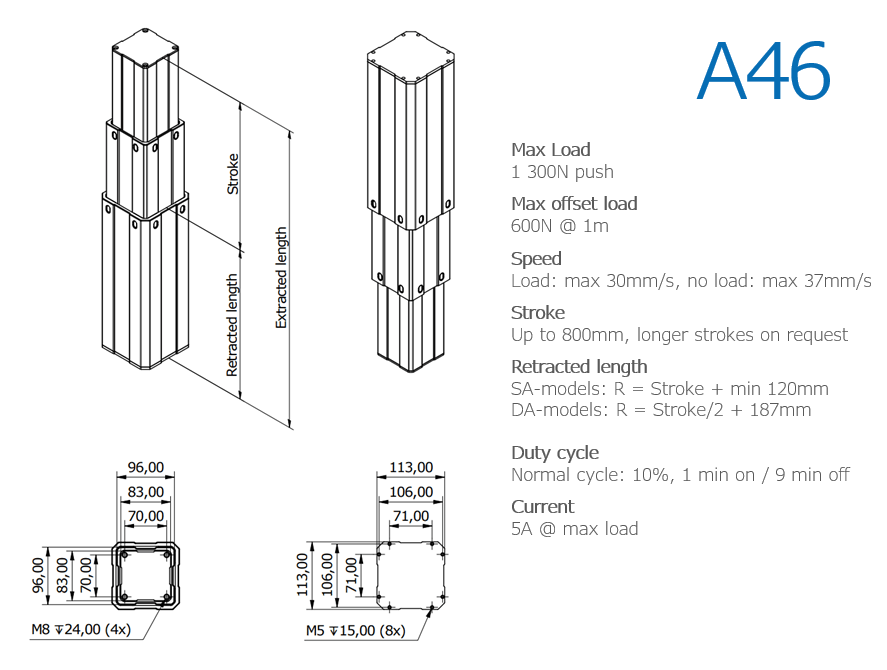

A46 Telescopic Lifting Column
Max Load1,300 N
Max Offset Load600 N @ 1 m
SpeedLoad: max 30 mm/s, No load: max 37 mm/s
StrokeUp to 800 mm, Longer strokes on request
Retracted LengthDA-models: R = Stroke/2 + 187 mm, SA-models: R = Stroke + min 120 mm
Duty cycle, on/offNormal cycle: 10%, 1 min on / 9 min off
Current5A @ max load
