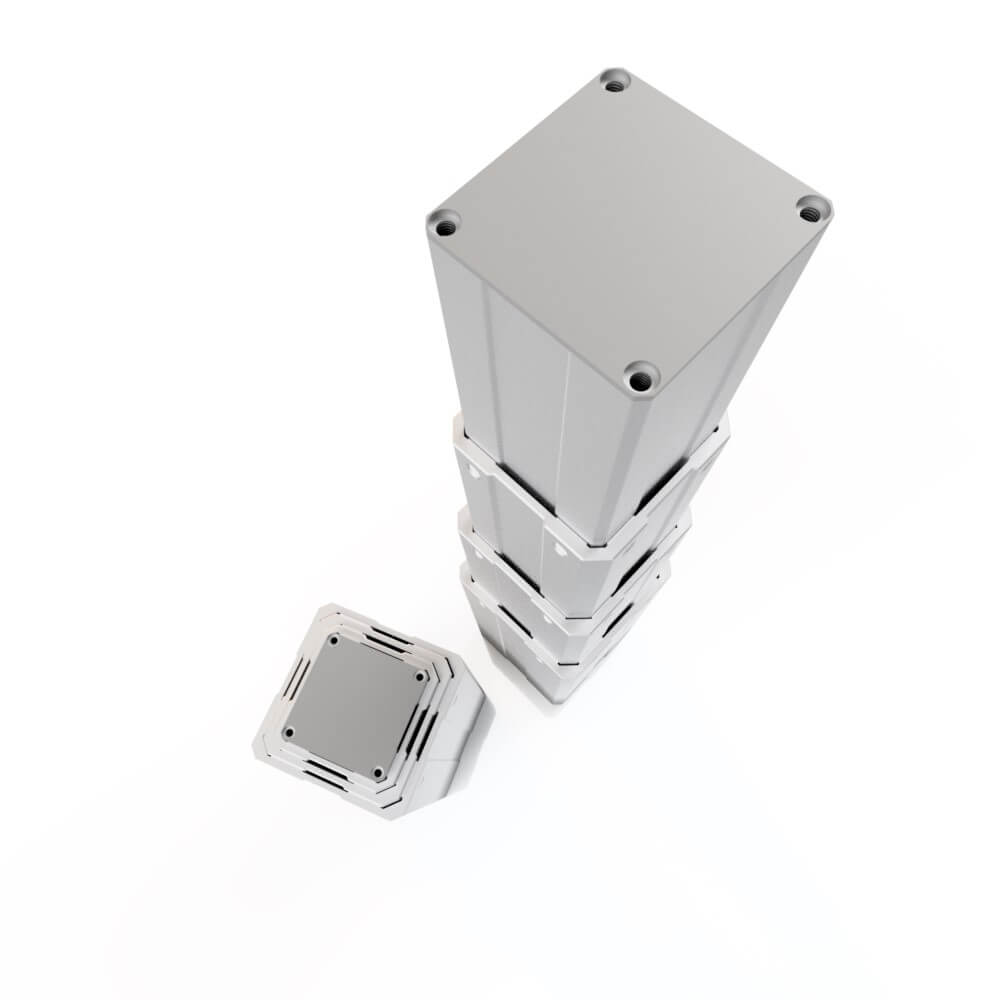

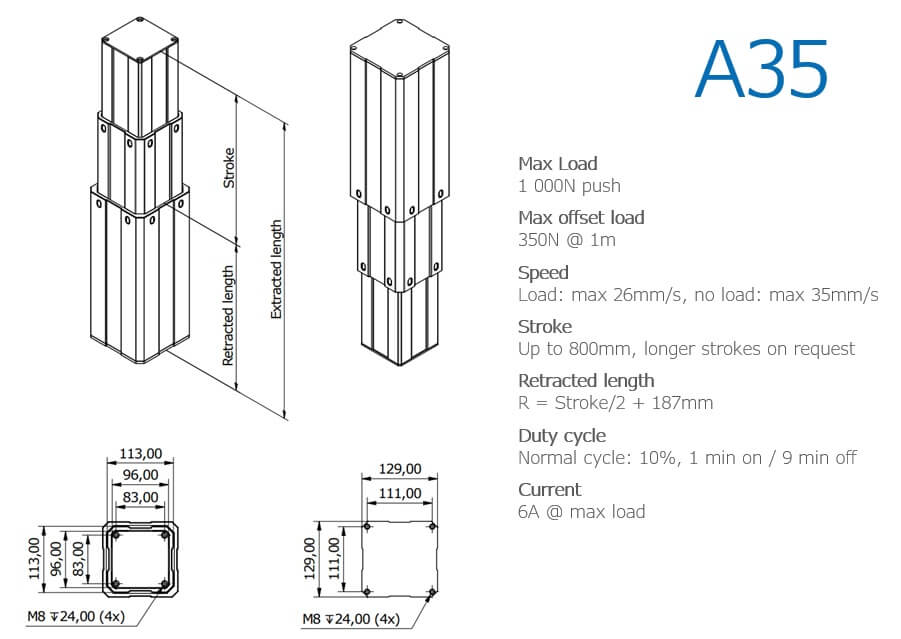

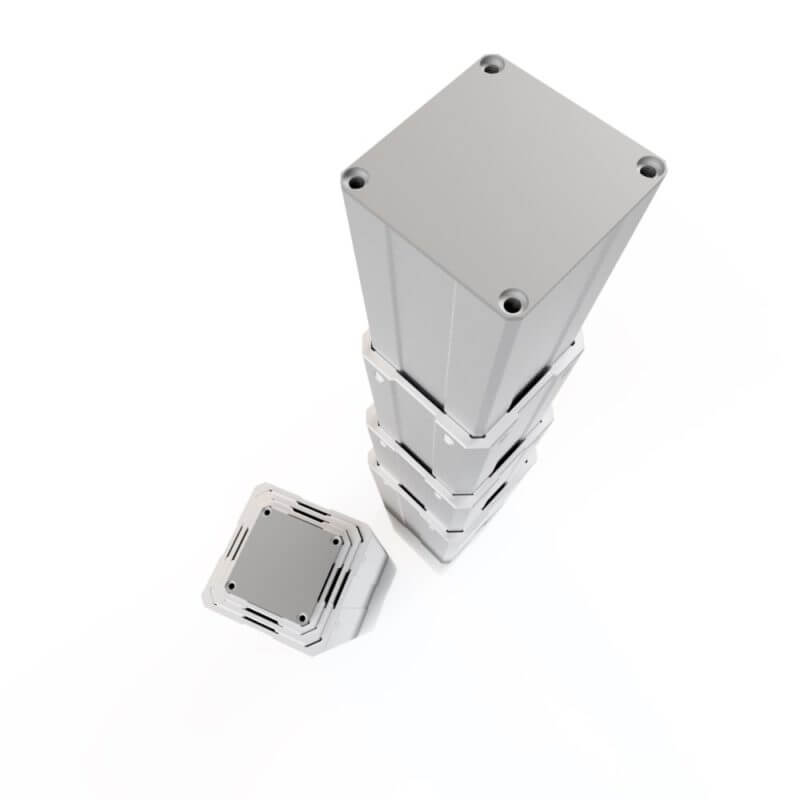

A35 Telescopic Lifting Column
Max Load1,000 N
Max Offset Load350 N @ 1 m
SpeedLoad: max 26 mm/s, No load: max 35 mm/s
StrokeUp to 800 mm, Longer strokes on request
Retracted LengthR = Stroke/2 + 187 mm
Duty cycle, on/offNormal cycle: 10%, 1 min on / 9 min off
Current6A @ max load
