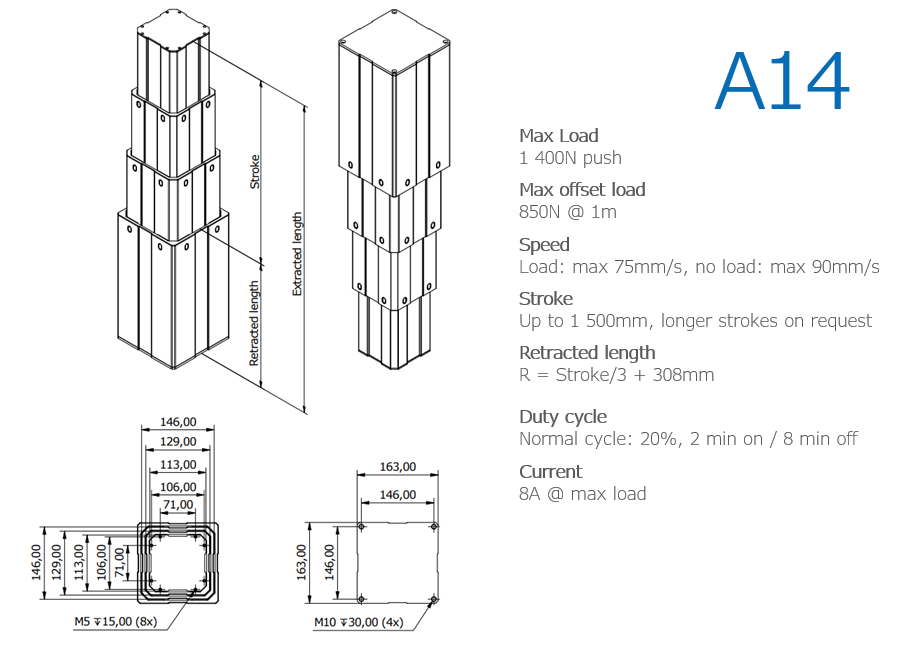

A14 Telescopic Lifting Column
Max Load1,400 N
Max Offset Load850 N @ 1 m
SpeedLoad: max 75 mm/s, No load: max 90 mm/s
StrokeUp to 1,500 mm, Longer strokes on request
Retracted LengthR = Stroke/3 + 308 mm
Duty cycle, on/offNormal cylce: 20%, 2 min on / 8 min off
Current8A @ max load
