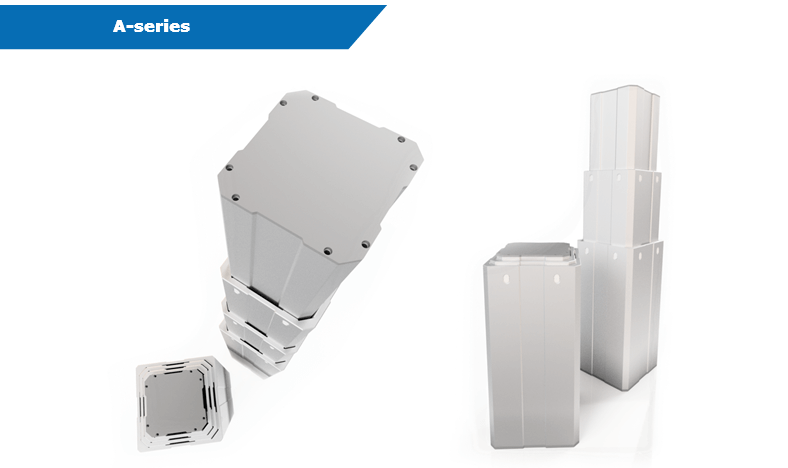

A-Series Telescopic Lifting Columns
The A-series lifting column is a square high-performance model which is suitable for a broad range of applications where a very robust and small column is needed. Our A-series columns are developed for stable performances, both with heavy centric and offset loads. The A56, A46, A45 and A35 models are in the small range of A-series lifting columns. A23, A14 and A13 are in the large range which makes them compatible with our patented drive for very long strokes, high speeds and heavy loads.

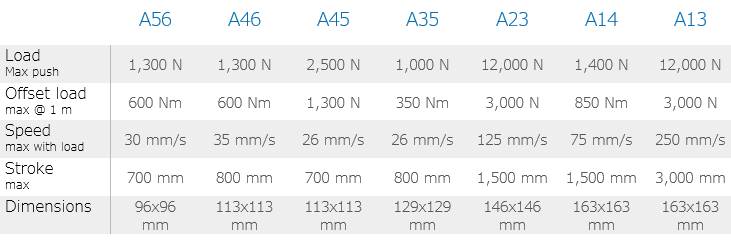

Model |
Load Max Push |
Offset Load Max @ 1 m |
Speed Max with Load |
Stroke Max |
Dimensions |
|---|---|---|---|---|---|
A56 |
1,300 N |
600 Nm |
30 mm/s |
700 mm |
96x96 mm |
A46 |
1,300 N |
600 Nm |
35 mm/s |
800 mm |
113x113 mm |
A45 |
2,500 N |
1,300 Nm |
26 mm/s |
700 mm |
113x113 mm |
A35 |
1,000 N |
350 Nm |
26 mm/s |
800 mm |
129x129 mm |
A23 |
12,000 N |
3,000 Nm |
125 mm/s |
1,500 mm |
146x146 mm |
A14 |
1,400 N |
850 Nm |
75 mm/s |
1,500 mm |
163x163 mm |
A13 |
12,000 N |
3,000 Nm |
250 mm/s |
3,000 mm |
163x163 mm |
