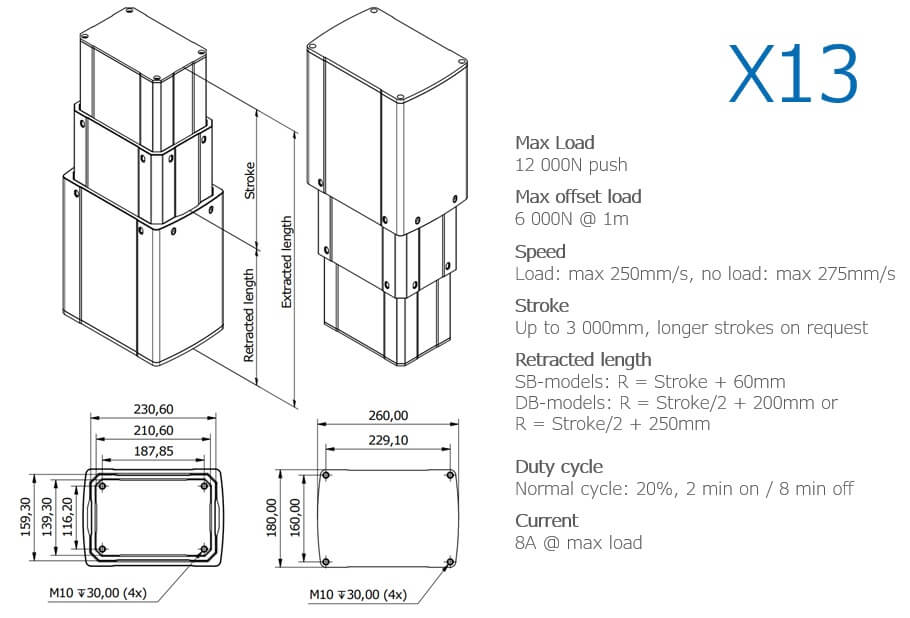

X13 Telescopic Lifting Column
Max Load12,000 N
Max Offset Load6,000 N @ 1m
SpeedLoad: max 250 mm/s, No load: max 275 mm/s
StrokeUp to 3,000 mm, Longer strokes on request
Retracted LengthDB-models: R = Stroke/2 + 200 mm or R = Stroke/2 + 250 mm, SB-models: R = Stroke + 60mm
Duty cycle, on/offNormal cylce: 20%, 2 min on / 8 min off
Current8A @ max load
