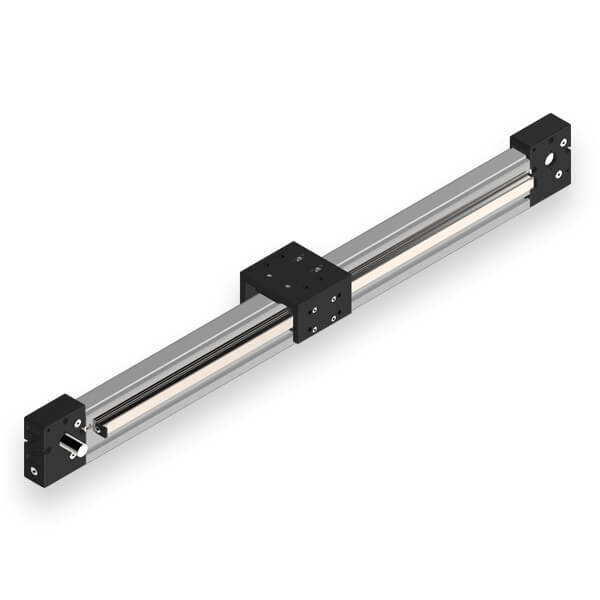

MSA-R6S Belt-Driven Linear Actuator

SKU: MSA-R6S-Actuator Category:

Request Quote

Motion

Horizontal or Vertical

Standard Travels

150 / 5750 mm

Max Load Horizontal [Vertical]

300 lbs [150 lbs]

Max Speed Horizontal [Vertical]

5000 mm/sec [5000 mm/sec]

Repeatability

+/- 0.025 mm

Moment Load

575 in-lbs [65 Nm]

Break Away Torque

13-14 oz.-in

Features

  • Extruded aluminum actuator body with T-slots for ease of mounting
  • Easy to adjust belt tensioner
  • One piece, machined and stress proof shafted pulley
  • Zero backlash belt to pulley design
  • Corrosion resistant components
  • Longer travel lengths are available on special request
