MSA-BT5 Thruster Linear Actuator

SKU: MSA-BT5-Thruster-Linear-Actuator Category:

Request Quote

Motion

Horizontal or Vertical

Maximum Thrust Force – lbs – [N]

1000 [455]

Travel Range

150 to 5775 mm

Travel Increment

25mm

Maximum Speed

2000 mm/s

Maximum Acceleration

5 G's

Repeatability

+/- 0.025 mm

Positional Accuracy

+/- 0.4 mm/m of travel

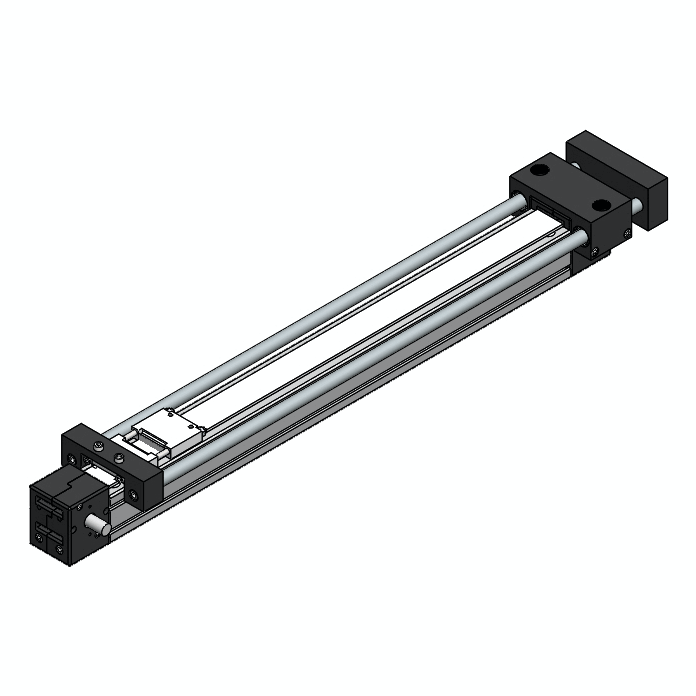

THRUSTER-ELECTRIC BELT DRIVEN ACTUATORS



Features

  • Durable, cost-effective alternative for pneumatic and hydraulic cylinders and expensive rod style actuators
  • Zero backlash belt to pulley design
  • Extruded base profile allows multiple side mounting and attachment of elements using T-slot nut fasteners
  • Designed for fast, easy replacement of spare parts
  • Open design does not retain contaminants and debris

MSA-BT5-Datasheet
