| Motion | Horizontal or Vertical |
|---|---|
| Standard Travels | 150 / 5550 mm |
| Max Load Horizontal [Vertical] | 500 lbs [250 lbs] |
| Max Speed Horizontal [Vertical] | 5080 mm/sec [5080 mm/sec] |
| Repeatability | +/- 0.025 mm |
| Moment Load | 460 in-lbs [52 Nm] |
| Break Away Torque | 32-36 oz.-in |
CALL TOLL FREE
CALL: 1-800-314-3332

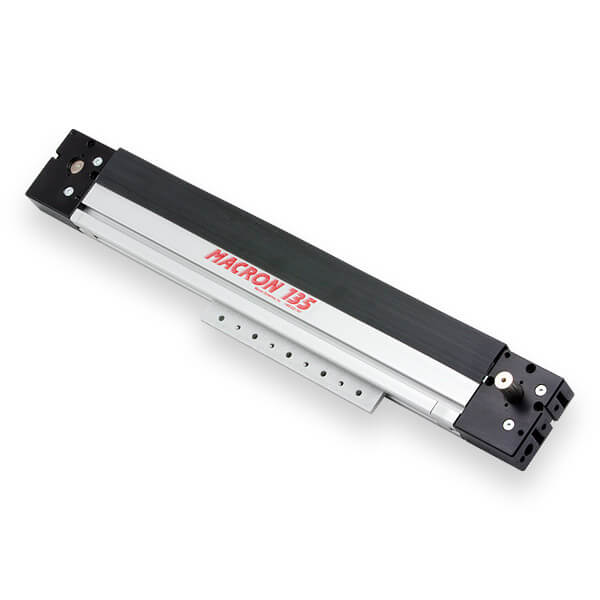

MSA-135 Belt-Driven Linear Actuator
Features
- Extruded aluminum actuator body with T-slots for ease of mounting
- Easy to adjust belt tensioner
- One piece, machined and stress proof shafted pulley
- Zero backlash belt to pulley design
- Corrosion resistant components
- Longer travel lengths are available on special request
