Model SHSC Spring Hanger with Tabs, Architectural Non-Seismic

SKU: SHSC-Spring-Hanger-with-Tabs Category:

* Request quote to see pricing

Request Quote

VMC offers its standard line of ceiling hangers for cost effective isolation of suspended ceilings. The SHSC Series Spring Isolation Hangers are designed to solve low frequency attenuation problems within a protected room or radiating from that room to surrounding locations. The SHSC Series are ideal for applications that do not have space constraints or require the isolation hanger to support other services.

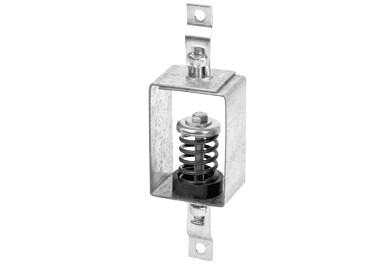

The SHSC Series contain a standard coil spring that offers up to 2″ static deflection. The spring is seated in a neoprene cup with an integral bushing that will prevent the lower support attachment from coming in contact with the isolator housing. The springs are color-coded for simple identification in the field. The hangers provide eyelets on the top and bottom to accept wire or rod attachment for ease of installation.

Features & Benefits
Standard coil spring offers up to 2″ of static deflection with loads from 21 to 370 lbs.
Upper and lower eyelets accept wire or rod attachment for ease of installation
Color coded units provide easy identification for installation and inspection
Steel housing provides durability and stability

Applications
Commercial utility and HVAC space
Performing arts centers
Computer operation rooms
Entertainment, social event spaces and health clubs
Transportation depots
Hospitals and research facilities
Office and residential complexes

Model SHSC-1B 20-85 lbs. Low profile spring hanger 1 inch deflection

Model SHSC-1C 60-370 lbs. Low Profile Spring hanger with eyesocket 1inch deflection

Model RSHSC 2Q 90-450 lbs. Elastomeric and spring hanger with offset eye socket 2 inch deflection
