| Unit | US Standard |
|---|---|
| Series | RS2-SS |
| Travel | 2" |
| US Travel Filter | 0 to 2" |
| Capacity | 120 lbs |
| US Capacity Filter | 111 to 165 lbs |
| Weight | 0.46 lbs |
| A | 3.250" |
| B | 0.750" |
| C | 1.750" |
| D | 2.625" |
| E | 0.875" |
| F | 0.400" |
| G | 0.870" |
| H | 2.750" |
| Accuracy | 0.0001" |
| Product Type | Crossed Roller |
| Finish | Black-Other |
| D1 | 0.244 |
| D2 | 0.244" |
| d_small | .157" |
| h_small | 1.500" |
| I | #6-32 |
| M1 | 52.39 |
| M2 | 82.78 |
| M3 | 86.93 |

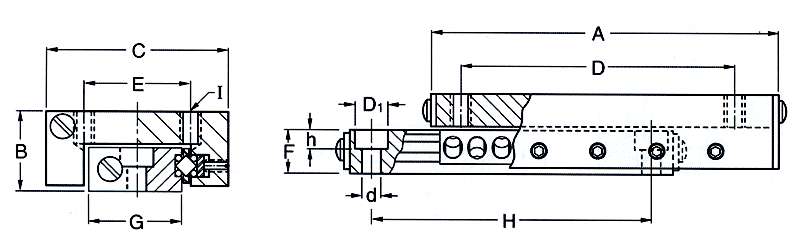

Dimension Drawing
