Model RHC/RHDC Neoprene Hanger with Tabs, Architectural Non-Seismic

SKU: RHC/RHDC-Neoprene-Hanger-with-Tabs Category:

* Request quote to see pricing

Request Quote

The RHC/RHDC Series neoprene isolation hangers offer a cost effective solution for the isolation of suspended ceilings. This series is designed to solve high frequency attenuation problems in a protected space or radiating from that space to surrounding locations. These isolators are ideal for applications that do not have space constraints or require the isolation hanger to support other services.

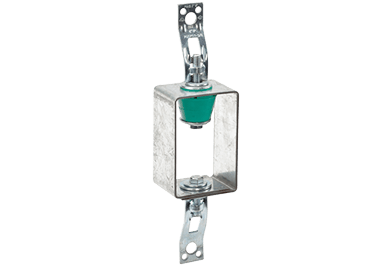

The RHC/RHDC Series offer standard eyelets top and bottom for ease of installation. The ceilings are supported from neoprene vibration hangers consisting of a steel box with an internal neoprene element designed for 0.25″ to 0.40″ of static deflection. The elements are molded with an integral bushing to prevent lower support attachment from coming in contact with the isolator housing.

Features & Benefits
Integral bushing molded to the isolation element prevents upper support attachment contact with the isolator housing
Steel housing provides durability and stability
Upper and lower eyelets accept wire or rod attachment for ease of installation
Color-striped units provide easy identification for installation and inspection

Applications
Commercial utility and HVAC space
Performing arts centers
Computer operation rooms
Entertainment, social event spaces and health clubs
Transportation depots
Hospitals and research facilities
Office and residential complexes

Model RHC 1 100-230 lbs. Elastomeric floating ceiling isolated hanger with offset eyelets 0.25 deflection

Model RHDC 120-200 lbs. Elastomeric floating ceiling isolated hanger with offset eyelets 0.40 deflection

Model SHSC-2Q 90-330 lbs. Low profile spring hanger with offset eyelets 2 inch deflection
