Model R2201-XYZ, Crossed Roller Positioning Stage
capacityz30 lbs
capacityxy85 lbs
UnitUS Standard
SeriesR2200
IMInch
Travel1.00"
US Travel Filter0 to 2"
Capacity85 lbs
US Capacity Filter56 to 110 lbs
Accuracy0.0001"
Product TypeCrossed Roller

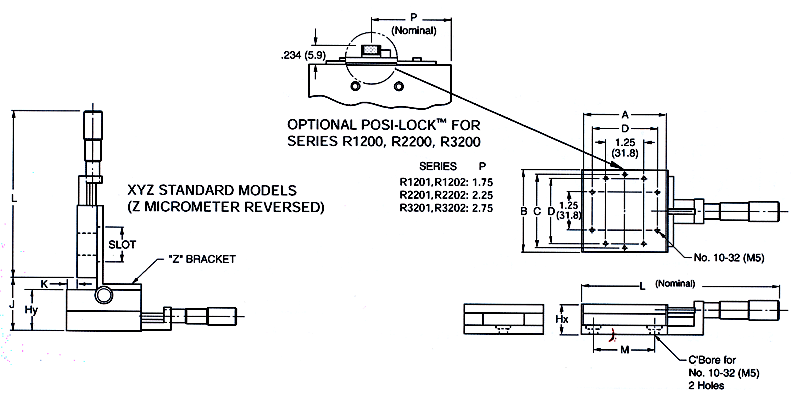

M180.58"
M276.16"
M376.16"
C3.625"
D3.125"
M3.625"
CHole1.50" DIA
CBORE10 - 32
Thread10 - 32
Holes10
P2.25"
L8.25"
Hx.91"
J3.08"
K.52"
Hy1.82"
SLOT1.50"x2.50"
Capacity XY85 lbs
Capacity Z30 lbs
Work Surface4.12 X 4.12
Through Hole10
Axis(XYZ) Triple Axis
Option LM1
Option PL1
Option PL Price150
OrientationCenter Line
