Model NB-6200-AC, Anti-Creep Crossed Roller Rail Sets

SKU: NB-6200-AC Category:

* Request quote to see pricing

Request Quote

Unit

Metric

Series

NB-6000

Number of Rollers

19

Travel

135 mm (5.314")

Metric Travel Filter

0 to 200 mm

Capacity

640 kg

Metric Capacity Filter

501 to 1000 kg

Length

200 mm (7.874")

Metric Length Filter

101 to 200 mm

Base Holes

4

A

31 mm (1.221")

B

15 mm (0.591")

C

14.2 mm (0.559")

D

6.0 mm (0.236")

S

3.0 mm (0.118")

M

50 mm (1.9685")

E

6.0 mm (0.236")

F

M6

J

M5

d_small

5.2 mm (0.205")

G

9.5 mm (0.374")

H

5.2 mm (0.205")

Accuracy

3 mm

Product Type

Crossed Roller

Material Type

Steel

M1
M2

3104

M3

3260

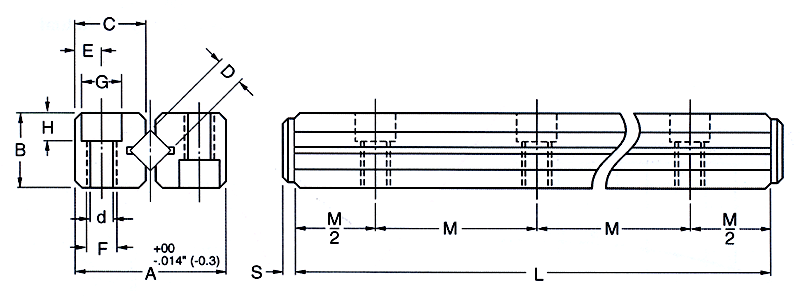

Dimension Drawing

General Info PDF

Life Formulas PDF

Moment Load Formulas/Ratings PDF
