Model M-2.5AC, Anti-Creep Linear Slides

SKU: M-2.5AC Category:

* Request quote to see pricing

Request Quote

Unit

US Standard

Series

M-AC

Travel

1.5"

US Travel Filter

0 to 2"

Capacity

13 lbs

US Capacity Filter

0 to 55 lbs

Weight

1.9 lbs

A

3.060"

B

0.500"

C

1.000"

D

2.750"

E

0.437"

F

0.250"

G

0.500"

H

2.750"

Carriage Holes

6-32 UNC-2B Thread

Hole (d)

.125"

Hole (D1)

.198"

Hole H

.125"

Counter Bore

#4

Accuracy

0.0005"

Product Type

Ball Slide

Finish

Clear-Other

M1

3.25

M2

10.4

M3

10.92

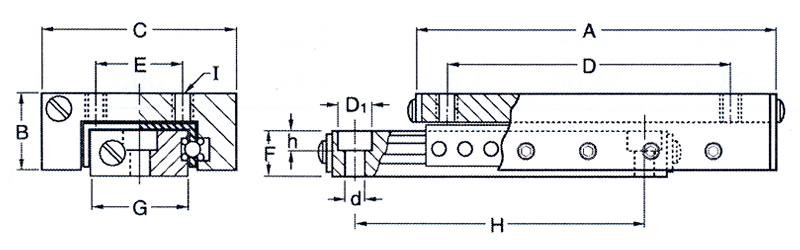

Dimension Drawing
