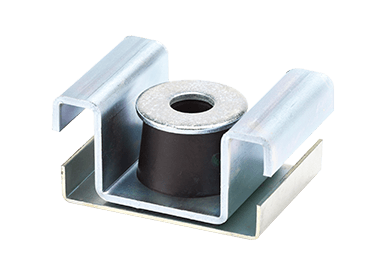

Model LPNH Low Profile Neoprene Hangers, Architectural Non-Seismic

SKU: LPNH-Low-Profile-Neoprene-Hangers Category:

* Request quote to see pricing

Request Quote

The LPNH Series is designed to be effective for high frequency attenuation problems either effecting a protected space or emanating from that space to surrounding locations. The low profile design requires no additional room above the cold rolled channels.

The unique housing construction of the LPNH hanger allows for standard 1 1/2″ cold rolled channel suspension members to be installed tight to the overhead deck. The LPNH Series offers positive receiver arms for cold rolled channels. The entire system occupies only 3 1/2″ of total of space including furring channels, two layers of 1/2″ sheetrock and isolator deflection.

The systems can be installed without the use of clips, eyelets and pencil rods. The neoprene elements used in the LPNH are designed for minimum real deflections of 0.25″ – .30″, and are molded with an integral bushing to prevent upper support attachment contact with the isolator housing.

Features & Benefits
Low profile design uses no additional space above or below standard drywall — occupying only 3 ½” of total space for the entire system
Unique housing construction allows for standard 1 ½” cold rolled channel suspension members to be installed tight to the overhead deck
Installation without the use of clips, eyelets and pencil rods
Integral bushing molded to the isolation element prevents upper support attachment contact with the isolator housing
Eyelet is provided as an option to threaded inserts for simplified attachment and installation
Color stripe for easy identification during installation and inspection

Applications
Commercial utility and HVAC space
Performing arts centers
Computer operation rooms
Entertainment, social event spaces and health clubs
Transportation depots
Hospitals and research facilities
Office and residential complexes

Model LPNH 70-300 lbs. Low profile elastomeric floating ceiling isolator
