| US Capacity Filter | |
|---|---|
| US Travel Filter | |
| Unit | Metric |
| Series | HPSA5-FB |
| Travel | 175 mm |
| Metric Travel Filter | 0 to 200 mm |
| Capacity | 82 kg |
| Metric Capacity Filter | 0 to 500 kg |
| Weight | 7893 kg |
| A | 304.8 mm |
| B | 60.3 mm |
| C | 146.1 mm |
| D | 250 mm |
| E | 100 mm |
| F | 34.3 mm |
| G | mm |
| H | 275 mm |
| Accuracy | 0.001 mm |
| Product Type | Ball Slide |
| Finish | Black-Other |
| h_small | 11 mm |
| A1 | 7.1 mm |
| H1 | 6.2 mm |
| K | M6 |
| M1 | 17.52 |
| M2 | 70.67 |
| M3 | 74.21 |
CALL TOLL FREE
CALL: 1-800-314-3332

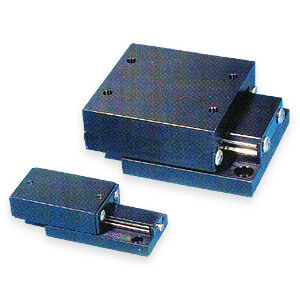

Model HPSA5-7FB, High Precision Series Ball Slides (Flange Base) – Metric
* Request quote to see pricing
