| Unit | US Standard |
|---|---|
| Series | HPS4 |
| Travel | 3" |
| US Travel Filter | 2.01 to 4" |
| Capacity | 140 lbs |
| US Capacity Filter | 111 to 165 lbs |
| Weight | 2.88 lbs |
| A | 5.750" |
| B | 1.375" |
| C | 3.500" |
| D | 3.750" |
| E | 2.000" |
| F | 0.620" |
| G | 1.980" |
| H | 4.250" |
| Accuracy | 0.00004" |
| Product Type | Ball Slide |
| Finish | Black-Other |
| D1 | 0.328 |
| D2 | 0.328" |
| d_small | .204" |
| h_small | 0.205" |
| I | #10-32 |
| A1 | 6.250" |
| M1 | 109.35 |
| M2 | 357 |
| M3 | 374.85 |

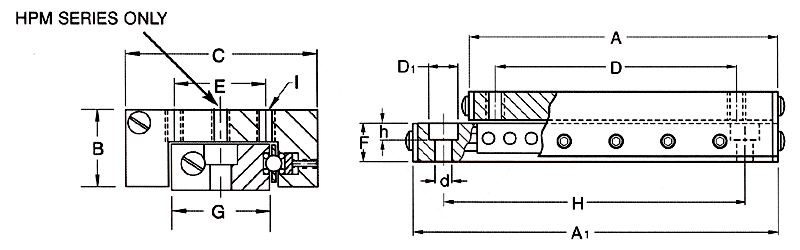

Dimension Drawing
