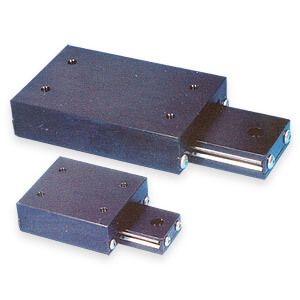

Model HPS3-5, High Precision Series Ball Slides

* Request quote to see pricing

Request Quote

Unit

US Standard

Series

HPS3

Travel

5"

US Travel Filter

4.01 to 6"

Capacity

145 lbs

US Capacity Filter

111 to 165 lbs

Weight

2 lbs

A

8.000"

B

1.000"

C

2.620"

D

7.000"

E

1.250"

F

0.620"

G

1.500"

H

7.375"

Accuracy

0.00004"

Product Type

Ball Slide

Finish

Black-Other

D1

0.328

D2

0.328"

d_small

.204"

h_small

0.205"

I

#10-32

A1

8.370"

M1

105.71

M2

304.5

M3

319.73

Dimension Drawing
