Model HPS2-1.5FB, High Precision Series Ball Slides (Flange Base)

SKU: HPS2-1.5FB Category:

* Request quote to see pricing

Request Quote

Unit

US Standard

Series

HPS2-FB

Travel

1.5"

US Travel Filter

0 to 2"

Capacity

31 lbs

US Capacity Filter

0 to 55 lbs

Weight

0.52 lbs

A

2.750"

B

1.031"

C

1.750"

D

2.125"

E

0.875"

F

0.680"

H

2.250"

Accuracy

0.00004"

Product Type

Ball Slide

Finish

Black-Other

D1

0.24

D2

0.240"

d_small

.157"

h_small

.145"

I

#6-32

A1

3.000"

H1

1.312"

K

0.28"

M1

12.76

M2

18

M3

18.9

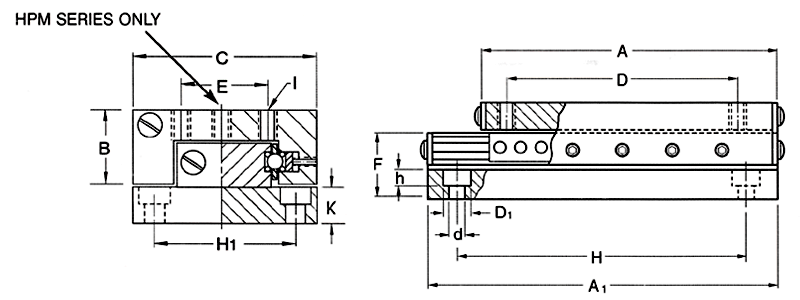

Dimension Drawing
