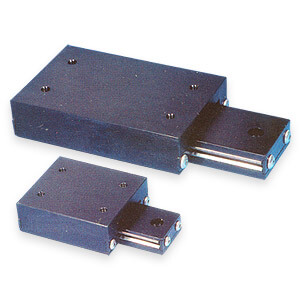

Model HPRS3-5, High Precision Series Crossed Roller Slides (Low Profile)

* Request quote to see pricing

Request Quote

Unit

US Standard

Series

HPRS3

Travel

5"

US Travel Filter

4.01 to 6"

Capacity

420 lbs

US Capacity Filter

331 to 500 lbs

Weight

2 lbs

A

8.000"

B

1.000"

C

2.620"

D

7.000"

E

1.250"

F

0.620"

G

1.500"

H

7.375"

Accuracy

0.00004"

Product Type

Crossed Roller

Finish

Black-Other

D1

0.328

D2

0.328"

d_small

.204"

h_small

0.205"

I

#10-32

A1

8.370"

M1

382.94

M2

667.92

M3

701.32

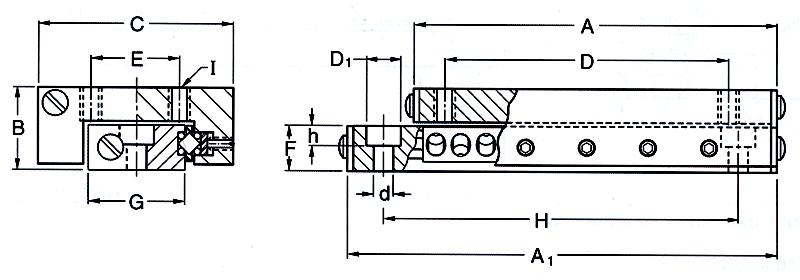

Dimension Drawing
