| Unit | US Standard |
|---|---|
| Series | HPRS3-FB |
| Travel | 2" |
| US Travel Filter | 0 to 2" |
| Capacity | 250 lbs |
| US Capacity Filter | 221 to 330 lbs |
| Weight | 1.4 lbs |
| A | 4.000" |
| B | 1.375" |
| C | 2.620" |
| D | 3.000" |
| E | 1.250" |
| F | 1.000" |
| H | 3.375" |
| Accuracy | 0.00004" |
| Product Type | Crossed Roller |
| Finish | Black-Other |
| D1 | 0.328 |
| D2 | 0.328" |
| d_small | .204" |
| h_small | 0.205" |
| I | #10-32 |
| A1 | 4.370" |
| M1 | 180.5 |
| M2 | 224.93 |
| M3 | 236.17 |

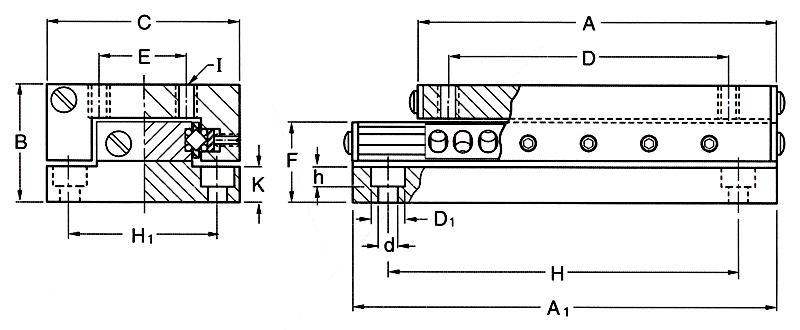

Dimension Drawing
