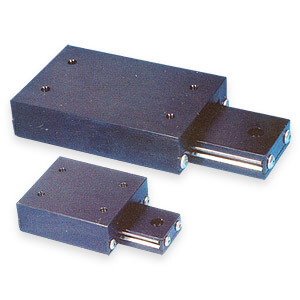

Model HPMA-3, High Precision Series Ball Slides (Low Profile) – Metric
UnitMetric
SeriesHPMA
Travel50 mm
Metric Travel Filter0 to 200 mm
Capacity14 kg
Metric Capacity Filter0 to 500 kg
Weight91 kg
A82.6 mm
B12.7 mm
C25.4 mm
D70 mm
ECL mm
F6.1 mm
G10.2 mm
H75 mm
Accuracy0.001 mm
Product TypeBall Slide
FinishBlack-Other
h_small6.1 mm
A13.5 mm
H13.4 mm
KM3
M10.74
M22.61
M33.72
