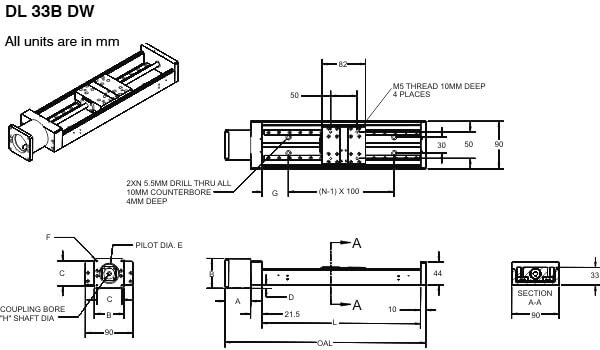

Model DL33B-DW-210-ST-PX, Series Linear Actuators
UnitMetric
SeriesDL33B Series Linear Actuators
WidthDouble Wide
Travel210 mm
Metric Travel Filter201 to 300 mm
Load Capacity900 N
Metric Capacity Filter801 to 1000 N
Accuracy100 mm
M128
M258
M358
OAL Stepper379.6
L Stepper300
N Stepper3
A Stepper48.1
B Stepper56.4
C Stepper47.2
D Stepper7.2
E Stepper38.2
G Stepper50
F Stepper8-32 THREAD
H Stepper6.35
OAL Servo384.7
A Servo53.2
B Servo60
C Servo49.5
D Servo8.9
E Servo50.1
L Servo300
N Servo3
G Servo50
F ServoM5 THREAD
H Servo8
DriveBall screw 8mm dia with 5 mm lead
Motor AdapterOriental PK264 (NEMA 23)
CofFriction0.01
Repeatability10
Parallelism25
BackLash20
Linear Speed200
SensorsProximity Sensor SUNX 6GLF
