Model DL33B-110-ST, Series Linear Actuators
UnitMetric
SeriesDL33B Series Linear Actuators
WidthStandard Width
Travel110 mm
Metric Travel Filter101 to 200 mm
Load Capacity900 N
Metric Capacity Filter801 to 1000 N
Accuracy100 mm

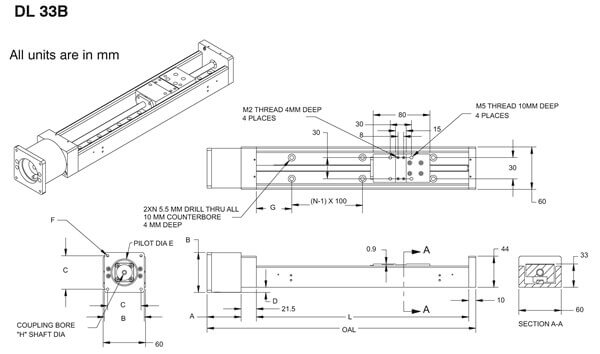

M118
M236"
M336
OAL Stepper279.6
L Stepper200
N Stepper2
A Stepper48.1
B Stepper56.4
C Stepper47.2
D Stepper7.2
E Stepper38.2
G Stepper50
F Stepper8-32 THREAD
H Stepper6.35
OAL Servo284.7
A Servo53.2
B Servo60
C Servo49.5
D Servo8.9
E Servo50.1
L Servo200
N Servo2
G Servo50
F ServoM5 THREAD
H Servo8
DriveBall screw 8mm dia with 5 mm lead
Motor AdapterOriental PK264 (NEMA 23)
CofFriction0.01
Repeatability10
Parallelism25
BackLash20
Linear Speed200
SensorsNo sensors
