Model DL33B-110-ST-PX, Series Linear Actuators

SKU: DL33B-110-ST-PX Category:

* Request quote to see pricing

Request Quote

Unit

Metric

Series

DL33B Series Linear Actuators

Width

Standard Width

Travel

110 mm

Metric Travel Filter

101 to 200 mm

Load Capacity

900 N

Metric Capacity Filter

801 to 1000 N

Accuracy

100 mm

M1

18

M2

36"

M3

36

OAL Stepper

279.6

L Stepper

200

N Stepper

2

A Stepper

48.1

B Stepper

56.4

C Stepper

47.2

D Stepper

7.2

E Stepper

38.2

G Stepper

50

F Stepper

8-32 THREAD

H Stepper

6.35

OAL Servo

284.7

A Servo

53.2

B Servo

60

C Servo

49.5

D Servo

8.9

E Servo

50.1

L Servo

200

N Servo

2

G Servo

50

F Servo

M5 THREAD

H Servo

8

Drive

Ball screw 8mm dia with 5 mm lead

Motor Adapter

Oriental PK264 (NEMA 23)

CofFriction

0.01

Repeatability

10

Parallelism

25

BackLash

20

Linear Speed

200

Sensors

Proximity Sensor SUNX 6GLF

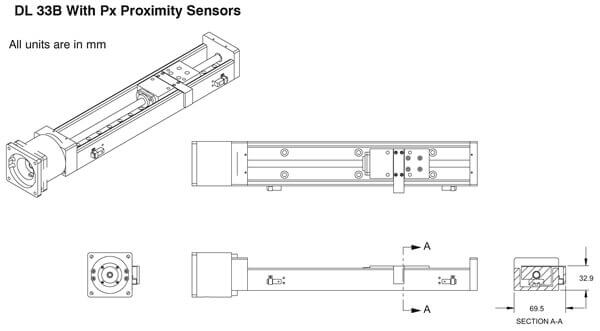

Dimension Drawing
