Model DL26L-DW-220-ST-PX, Series Linear Actuators

SKU: DL26L-DW-220-ST-PX Category:

* Request quote to see pricing

Request Quote

Unit

Metric

Series

DL26L Series Linear Actuators

Width

Double Wide

Travel

220 mm

Metric Travel Filter

201 to 300 mm

Load Capacity

300 N

Metric Capacity Filter

201 to 400 N

Accuracy

50 mm

M1

7.8

M2

15.2

M3

15.2

OAL Stepper

347.2

L Stepper

291.5

N Stepper

4

A Stepper

35.7

B Stepper

42

C Stepper

31

D Stepper

3

E Stepper

22

G Stepper

25.75

F Stepper

3.2 THRU

H Stepper

5

OAL Servo

352.3

A Servo

40.8

B Servo

42

C Servo

32.5

D Servo

3

E Servo

22

L Servo

291.5

N Servo

4

G Servo

25.75

F Servo

M4 THREAD

H Servo

6

Drive

Teflon Coated lead screw 6.35mm dia with 1 mm lead

Motor Adapter

Oriental PK243 (NEMA 17)

CofFriction

0.01

Repeatability

4

Parallelism

25

BackLash

0

Linear Speed

100

Sensors

Proximity Sensor SUNX 6GLF

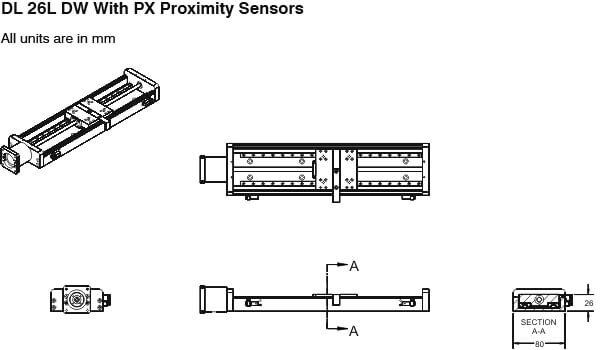

Dimension Drawing
