Model DL26L-220-SV-PH, Series Linear Actuators
UnitMetric
SeriesDL26L Series Linear Actuators
WidthStandard Width
Travel220 mm
Metric Travel Filter201 to 300 mm
Load Capacity300 N
Metric Capacity Filter201 to 400 N
Accuracy50 mm
M14.7
M29.6
M39.6
OAL Stepper347.2
L Stepper291.5
N Stepper4
A Stepper35.7
B Stepper42
C Stepper31
D Stepper3
E Stepper22
G Stepper25.75
F Stepper3.2 THRU
H Stepper5
OAL Servo352.3
A Servo40.8
B Servo42
C Servo32.5
D Servo3
E Servo22
L Servo291.5
N Servo4
G Servo25.75
F ServoM4 THREAD
H Servo6
DriveTeflon Coated lead screw 6.35mm dia with 1 mm lead
Motor AdapterYaskawa SGMAH
CofFriction0.01
Repeatability4
Parallelism25
Linear Speed100

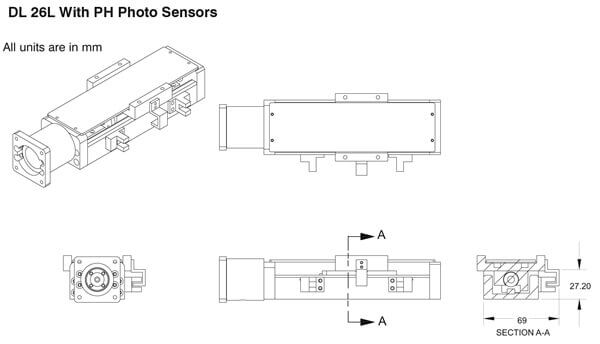

SensorsPhoto Sensors SUNX PMY54
