Model DL26L-120-SV-C-PX, Series Linear Actuators
UnitMetric
SeriesDL26L Series Linear Actuators
WidthStandard Width
Travel120 mm
Metric Travel Filter101 to 200 mm
Load Capacity300 N
Metric Capacity Filter201 to 400 N
Accuracy50 mm
M14.7
M29.6
M39.6

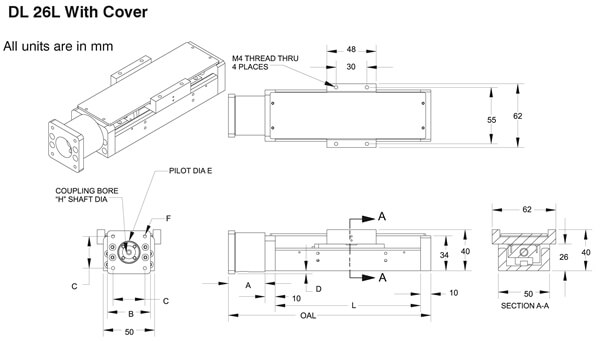

OAL Stepper247.2
L Stepper191.5
N Stepper3
A Stepper35.7
B Stepper42
C Stepper31
D Stepper3
E Stepper22
G Stepper15.75
F Stepper3.2 THRU
H Stepper5
OAL Servo252.3
A Servo40.8
B Servo42
C Servo32.5
D Servo3
E Servo22
L Servo191.5
N Servo3
G Servo15.75
F ServoM4 THREAD
H Servo6
DriveTeflon Coated lead screw 6.35mm dia with 1 mm lead
Motor AdapterYaskawa SGMAH
CofFriction0.01
Repeatability4
Parallelism25
Linear Speed100

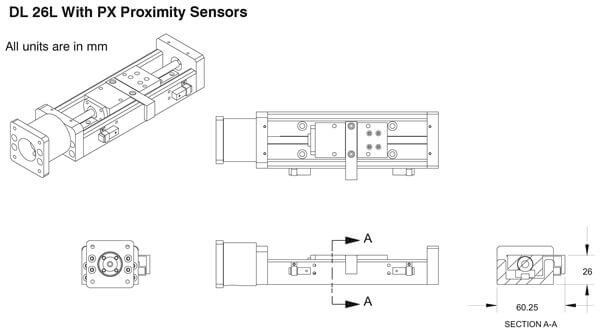

SensorsProximity Sensor SUNX 6GLF
