Model DL26B-DW-170-SV-C-PH, Series Linear Actuators

SKU: DL26B-DW-170-SV-C-PH Category:

* Request quote to see pricing

Request Quote

Unit

Metric

Series

DL26B Series Linear Actuators

Width

Double Wide

Travel

170 mm

Metric Travel Filter

101 to 200 mm

Load Capacity

600 N

Metric Capacity Filter

401 to 600 N

Accuracy

90 mm

M1

12.3

M2

27.2

M3

27.2

OAL Stepper

308.7

L Stepper

241.5

N Stepper

3

A Stepper

35.7

B Stepper

42

C Stepper

31

D Stepper

3

E Stepper

22

G Stepper

40.75

F Stepper

3.2 THRU

H Stepper

5

OAL Servo

313.8

A Servo

40.8

B Servo

42

C Servo

32.5

D Servo

3

E Servo

30

L Servo

241.5

N Servo

3

G Servo

40.75

F Servo

M4 THREAD

H Servo

6

Drive

Ball screw 6mm dia with 1 mm lead

Motor Adapter

Yaskawa SGMAH

CofFriction

0.01

Repeatability

10

Parallelism

25

BackLash

20

Linear Speed

200

Sensors

Photo Sensors SUNX PMY54

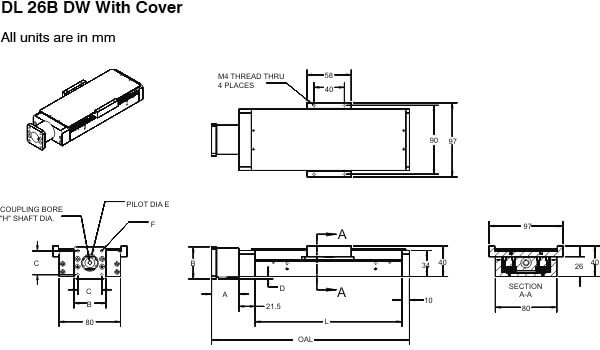

Dimension Drawing
