Model DL26B-220-ST-PX, Series Linear Actuators

SKU: DL26B-220-ST-PX Category:

* Request quote to see pricing

Request Quote

Unit

Metric

Series

DL26B Series Linear Actuators

Width

Standard Width

Travel

220 mm

Metric Travel Filter

201 to 300 mm

Load Capacity

600 N

Metric Capacity Filter

401 to 600 N

Accuracy

90 mm

M1

9.3

M2

19.2

M3

19.2

OAL Stepper

358.7

L Stepper

291.5

N Stepper

4

A Stepper

35.7

B Stepper

42

C Stepper

31

D Stepper

3

E Stepper

22

G Stepper

25.75

F Stepper

3.2 THRU

H Stepper

5

OAL Servo

363.8

A Servo

40.8

B Servo

42

C Servo

32.5

D Servo

3

E Servo

30

L Servo

291.5

N Servo

4

G Servo

25.75

F Servo

M4 THREAD

H Servo

6

Drive

Ball screw 6mm dia with 1 mm lead

Motor Adapter

Oriental PK243 (NEMA 17)

CofFriction

0.01

Repeatability

10

Parallelism

25

BackLash

20

Linear Speed

200

Sensors

Proximity Sensor SUNX 6GLF

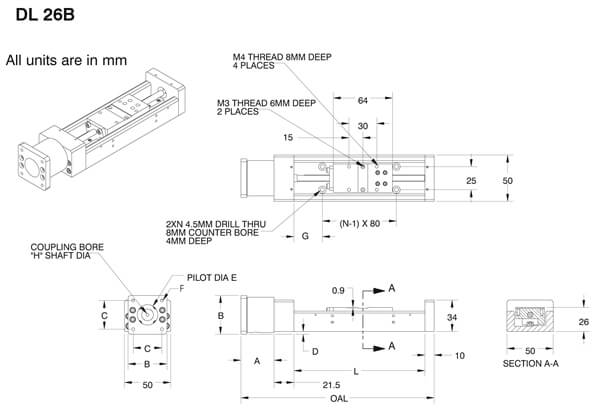

Dimension Drawing
