Model DL26B-220-ST-C-PH, Series Linear Actuators
UnitMetric
SeriesDL26B Series Linear Actuators
WidthStandard Width
Travel220 mm
Metric Travel Filter201 to 300 mm
Load Capacity600 N
Metric Capacity Filter401 to 600 N
Accuracy90 mm

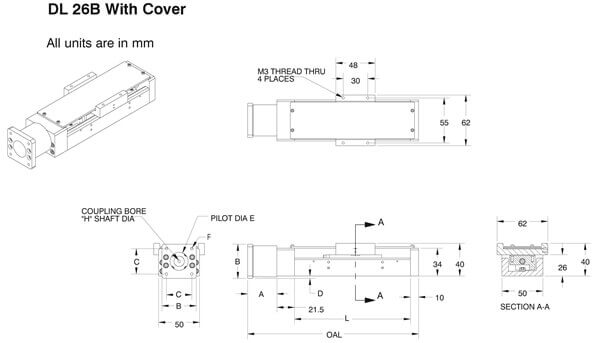

M19.3
M219.2
M319.2
OAL Stepper358.7
L Stepper291.5
N Stepper4
A Stepper35.7
B Stepper42
C Stepper31
D Stepper3
E Stepper22
G Stepper25.75
F Stepper3.2 THRU
H Stepper5
OAL Servo363.8
A Servo40.8
B Servo42
C Servo32.5
D Servo3
E Servo30
L Servo291.5
N Servo4
G Servo25.75
F ServoM4 THREAD
H Servo6
DriveBall screw 6mm dia with 1 mm lead
Motor AdapterOriental PK243 (NEMA 17)
CofFriction0.01
Repeatability10
Parallelism25
BackLash20
Linear Speed200

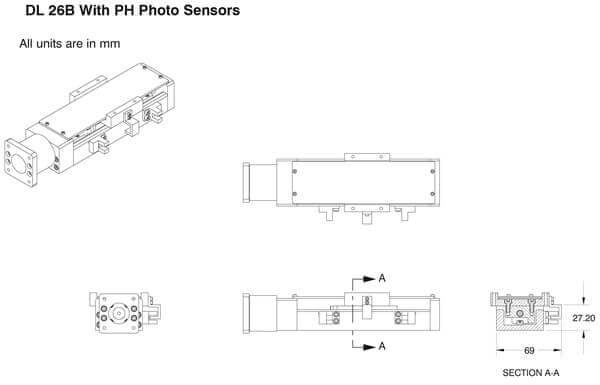

SensorsPhoto Sensors SUNX PMY54
