Unit | Metric |
---|---|
Series | DL20 Series Linear Actuators |

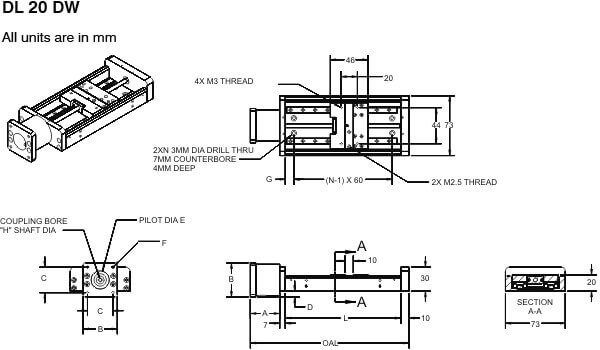

Width | Double Wide |
Travel | 95 mm |
Metric Travel Filter | 0 to 100 mm |
Load Capacity | 200 N |
Metric Capacity Filter | 0 to 200 N |
Accuracy | 50 mm |
M1 | 3.8" |
M2 | 8.2 |
M3 | 8.2" |
OAL Stepper | 193.7 |
L Stepper | 141 |
N Stepper | 3 |
A Stepper | 35.7 |
B Stepper | 42 |
C Stepper | 31 |
D Stepper | 7.1 |
E Stepper | 22 |
G Stepper | 10.5 |
F Stepper | 3.2 THRU |
H Stepper | 5 |
OAL Servo | 198.8 |
A Servo | 40.8 |
B Servo | 42 |
C Servo | 32.5 |
D Servo | 7.1 |
E Servo | 30 |
L Servo | 141 |
N Servo | 3 |
G Servo | 10.5 |
F Servo | M4 THREAD |
H Servo | 6 |
Drive | Teflon Coated lead screw 4.8mm dia with 1 mm lead |
Motor Adapter | Yaskawa SGMAH |
CofFriction | 0.01 |
Repeatability | 4 |
Parallelism | 15 |
BackLash | 0 |
Linear Speed | 100 |
Sensors | No sensors |
