Model DL20-95-ST-C-PX, Series Linear Actuators

SKU: DL20-95-ST-C-PX Category:

* Request quote to see pricing

Request Quote

Unit

Metric

Series

DL20 Series Linear Actuators

Width

Standard Width

Travel

95 mm

Metric Travel Filter

0 to 100 mm

Load Capacity

200 N

Metric Capacity Filter

0 to 200 N

Accuracy

50 mm

M1

2.1

M2

4.6

M3

4.6

OAL Stepper

193.7

L Stepper

141

N Stepper

3

A Stepper

35.7

B Stepper

42

C Stepper

31

D Stepper

7.1

E Stepper

22

G Stepper

10.5

F Stepper

3.2 THRU

H Stepper

5

OAL Servo

198.8

A Servo

40.8

B Servo

42

C Servo

32.5

D Servo

7.1

E Servo

30

L Servo

141

N Servo

3

G Servo

10.5

F Servo

M4 THREAD

H Servo

6

Drive

Teflon Coated lead screw 4.8mm dia with 1 mm lead

Motor Adapter

Oriental PK243 (NEMA 17)

CofFriction

0.01

Repeatability

4

Parallelism

15

BackLash

0

Linear Speed

100

Sensors

Proximity Sensor SUNX 6GLF

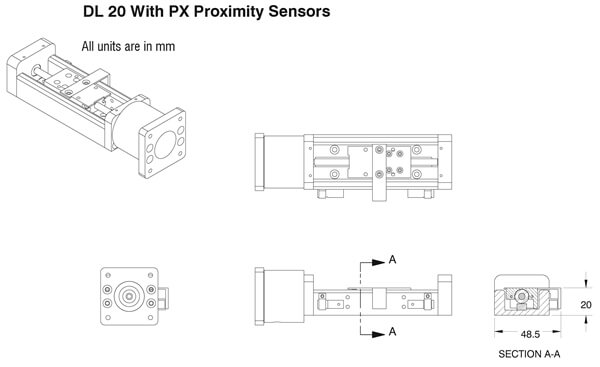

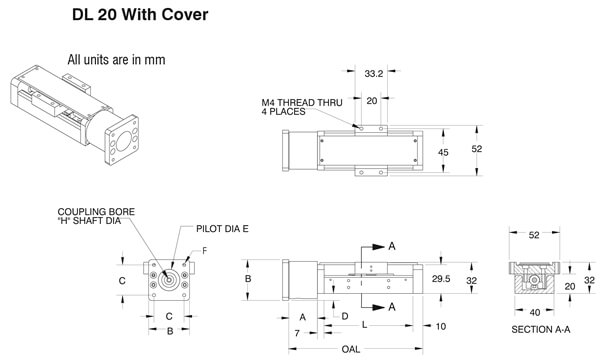

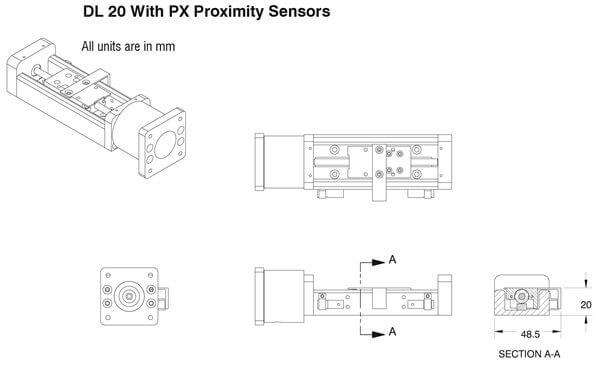

Dimension Drawing
