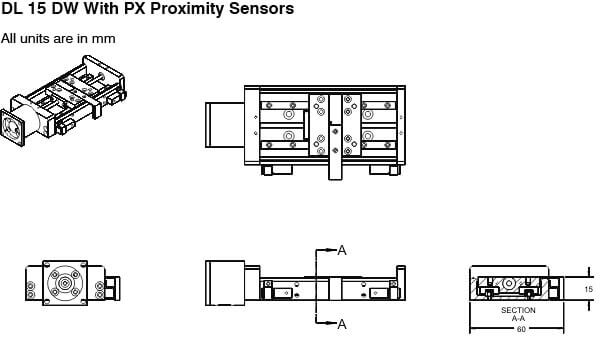

Model DL15-DW-75-ST-PX, Series Linear Actuators
UnitMetric
SeriesDL15 Series Linear Actuators
WidthDouble Wide
Travel75 mm
Metric Travel Filter0 to 100 mm
Load Capacity150 N
Metric Capacity Filter0 to 200 N
Accuracy50 mm
M12.6"
M24.6
M34.6
OAL Stepper151.2
L Stepper112
N Stepper4
A Stepper34.2
B Stepper28
C Stepper23
D Stepper3.2
E Stepper22
OAL Servo152.2
A Servo35.2
B Servo25
C Servo19.8
D Servo1.7
E Servo20
DriveTeflon Coated lead screw 3.17mm dia with 1 mm lead
Motor AdapterOriental PK223 (NEMA 11)
CofFriction0.01
Repeatability4
Parallelism10
Linear Speed100
SensorsProximity Sensor SUNX 6GLF
